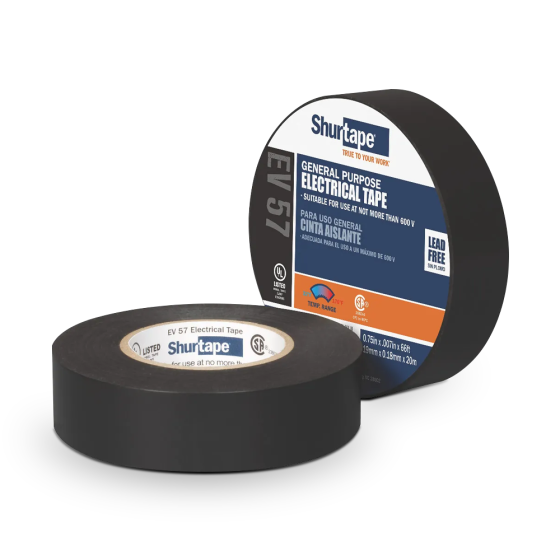

Shurtape® EV 57 General Purpose Grade Electrical Tape 3/4", 60', 7 mil (Black)

APPLICATIONS

General purpose grade, 7.0 mil vinyl insulation tape for use in a variety of mechanical and electrical applications. UL Listed and CSA Approved, EV 57B is a highly conformable, lead free and flame retardant black electrical tape for use indoors and out.

FEATURES & BENEFITS

• For primary insulation of electrical splices up to 600 V
• Can be used when wrapping wire harnesses and cables
• For indoor and outdoor use
• Highly conformable
• Hand-tearable
• Lead free
• Flame retardant
• Resistant to UV, oils, acids, alkalies, corrosive chemicals and water
• Overall Grade/Function: General Purpose
• Backing: Monomeric polyvinylchloride (PVC)
• Adhesive: Non-corrosive, rubber-based
• Tensile Strength: 16 lbs./in width 28 N/10 mm
• Adhesion to Stainless Steel: 24 oz/in width 2.63 N/10 mm
• Thickness: 7.0 mils 0.18 mm
• Elongation: 250% 250%
• Dielectric Strength: 1,300 V/mil 1,300 V/mil
• Dielectric Breakdown: 9,100 V 9,100 V
• Service Temperature Range: 32 F to 176 F 0 C to 80 C
