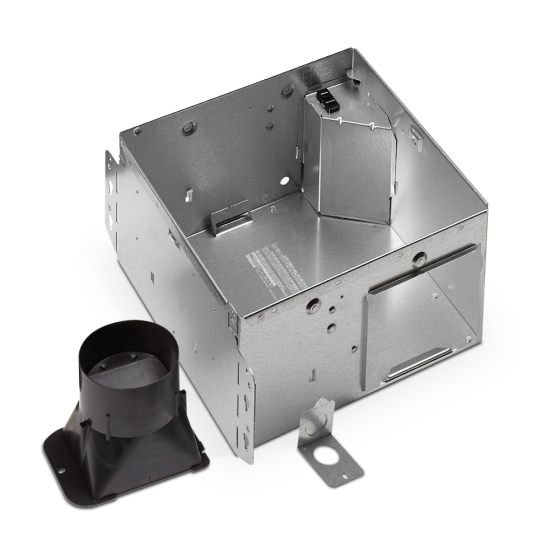

Broan® Flex™ Ventilation Fan Housing 4 in. Round Duct, 9-1/4 in. x 10 in. x 5-3/4 in.

APPLICATIONS

The Broan® Flex™ Series A000HFNF Ventilation Fan Housing is used with Broan® A110F1, A80F1, AE100BF1, AE110F1, AE110KF, AE50110DCF, AE50F1, AE80BF1, and AE80F1 Motor/Blade/Grille Assemblies. With the housing for the fan sold separately from the grille and motor, contractors are able to continue construction and not have to worry about damaging, losing or storing the product. The Flex Series housing and finish packs provide revolutionary innovations such as foldable mounting ears, a new damper, tighter housing to decrease air leakage, and includes the options of having a flangeless housing while the finish pack grilles complement any decor.

FEATURES & BENEFITS

• Polymeric damper/duct connector with tapered sleeve and no metallic clatter
• Sturdy, easy, four-point mounting directly to joist
• Can be mounted in the ceiling or the wall
• SnapFit Flange Kit offers flexible installation for new construction or retrofit upgrades
• TrueSeal™ Damper technology reduces air leakage up to 50%
• UL listed for use over tubs and showers when connected to a GFCI circuit
• Corrosion resistant galvanized steel housing stands up to moisture
• Duct Size: 4” Round
• Housing Dimensions: 9-1/4" x 10" x 5-3/4"
• Room Side Installation: Yes
• Minimum Construction Space Required 2" x 6"
