Rectorseal® Condensate Trap Kit with Overflow Switch 3/4"
APPLICATIONS

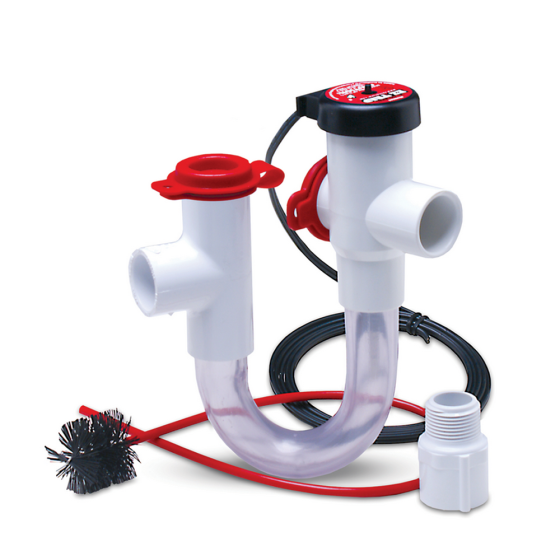

The EZ Trap EZT 210 is a clear cleanable 3/4" condensate trap with overflow switch. Standard SmartTrap Kit fits most applications requiring automatic shutdown. Includes 3/4" Standard Trap, 3/4" cross, 3/4" red cap, 1" x 3/4" bushing, 3/4" tee, 3/4" black stub, 3/4" male adapter, float switch assembly, 48" cable, cleaning brush, 1" drop.
FEATURES & BENEFITS
• Proven reliability and higher switching capacity with microswitch technology (4A NO/NC)
• Transparent Trap is easy to clean and easy to inspect.
• Watertight red caps provide easy access to clean the trap and drain pan outlet.
• Quality construction with durable schedule 40 PVC fittings.
• SmartTrap adds a float switch that warns of blockage and shuts down the A/C unit. Slip fit float switch removes easily for cleaning and inspection.
INCLUDES
• 3/4" Standard Trap (1)
• 3/4" Cross (1)
• 3/4" Tee (1)
• Red Cap (2)
• Float Switch Assembly (1)
• 72" Modular Cable (1)
• 3/4" Adaptor (1)
• Cleaning Brush (1)
• Red/Blue Service Label (1)
• Yellow Cleaning Label (1)
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 0.825 | Exterior Dimensions (D) (inches) | 14.450000 | Exterior Dimensions (W) (inches) | 8.600000 | Exterior Dimensions (H) (inches) | 2.500000 | Shipping Weight (lbs) | 3.000000 |
