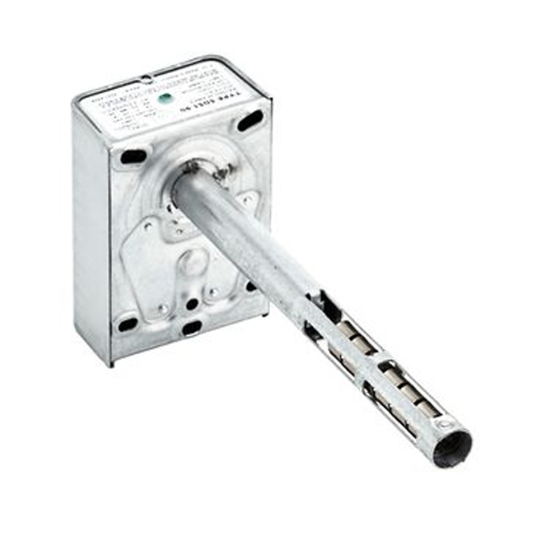

FEATURES
For applications with narrow space limitations. Regulates fan or blower operation and acts as high limit safety control.
• Summer fan switch for ventilation without changing control settings. Has same fan and limit switch mechanism• Dial has individual pointers for fan cut-in and cut-out settings.
• Removable solid copper jumper between fan and limit switches
• Long terminal screws for wiring
• Junctions can be made on terminal block
• Slotted mounting holes for easy installation.
SPECIFICATIONS
• Length: 8” Element• Temperature Range: Fan - 50 to 265°F (10 to 129°C)
• Temperature Range: Limit - 100 to 300 deg. F (38 to 149 deg. C)
• Differential: Fan-Adjustable 15°F minimum Limit-Fixed 25°F
• Switch Action: Fan-Close on Rise Limit-Open on Rise
• Amperage: Fan Circuit 5.6 FLA at 24 Vac, 14.0 FLA at 120 Vac, 7.0 FLA at 240, Limit 6.0 FLA at 24 Vac, 10.0 FLA at 120 Vac, 6.0 FLA 240
• Overall Dimensions: 4.3”H X 2.9”W X 1.6”D (Case)
• Approvals: U.L. listed and C.S.A. approved
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 2 | Exterior Dimensions (D) (inches) | 9.000000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 2.000000 | Shipping Weight (lbs) | 2.000000 |
