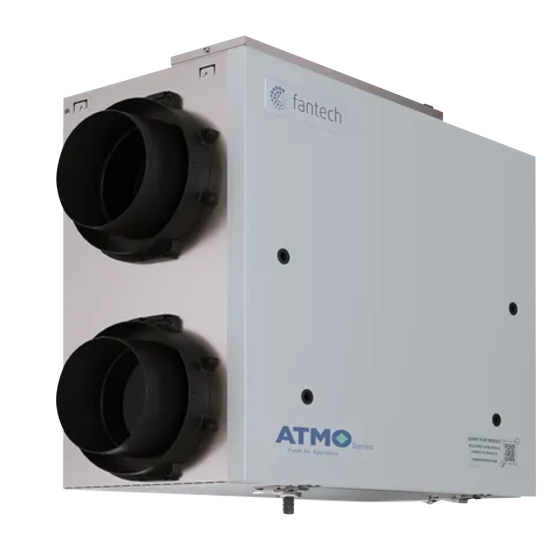

Fantech® ATMO Heat Recovery Ventilator 6" Round Ducts, 150CFM, 120Vac

FEATURES

Fantech's side port connection HRV for budget conscious house projects, the ATMO 150H unit brings a continuous supply of fresh air into a home while exhausting an equal amount of contaminated air.

During winter, fresh incoming air is tempered by the heat that is transferred from the outgoing air, so you save on energy costs, while during summer, the incoming air is pre-cooled if the house is equipped with an air cooling system. The ATMO 150H is equipped with automatic defrost mechanisms so you can use your HRV all year long.

• Compact design
• Fans with backward curved blade
• Electrostatic filters (washable)
• Polypropylene heat recovery core
• Removable screw terminal for easy connection with external access
• Lightweight 44 lbs (20Kg)
• Multiple speed operation

Fans
Two factory-balanced fans with backward curved blades. Motors come with permanently lubricated, sealed ball-bearings to guarantee long life and maintenance-free operation.
Heat Recovery Core
Core dimensions are 12” x 12” (305 x 305 mm) with a 10” (254 mm) depth. Our polypropylene heat exchangers are designed and manufactured to withstand extreme temperature variations.

Defrost
A preset defrost sequence is activated at an outdoor air temperature of 23°F (-5°C) and lower. During the defrost sequence, the supply blower shuts down & the exhaust blower switches into high speed to maximize the effectiveness of the defrost strategy. The unit then returns to normal operation, and continues cycle.
Serviceability
Core, filters, fans and drain pan can be easily accessed through latched door. Core conveniently slides out on our new easy glide core guides. 17" (432 mm) of clearance is recommended for removal of core.

Case
22 gauge galvanized steel cabinet with a pre-painted steel corrosion resistant door.
Insulation
Cabinet is fully insulated with 3/4” (19 mm) high density expanded polystyrene.

Filters
Two (2), UL900 certified, washable electrostatic panel type air filters 10” (254 mm) x 11.9” (302 mm) x 0.125” (3 mm).
Controls
External three (3) position (Low/Stand By/Medium) rocker switch that will offer continuous ventilation. Fantech offers a variety of external controls.

Installation
Unit is typically hung by using installation kit supplied with unit. Mounting chains inserted on hooks located on top four (4) corners of unit. An optional wall bracket is available.

Warranty
7 years on motor, 5 years on electrical components and core.

SPECIFICATIONS

• Duct size – 6" (152 mm)
• Voltage/Phase – 120/1
• Power rated – 168 W
• Amp – 1.4 A
• Average airflow – 161 cfm (76 L/s) @ 0.4" Ps (100Pa)
