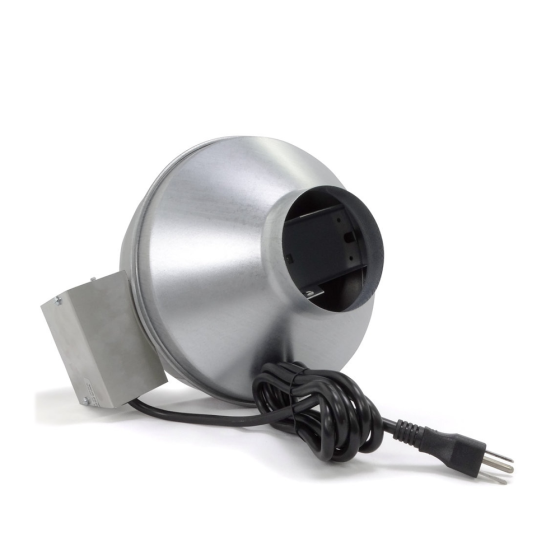

Fantech® DBF-4XLT Inline Duct Fan, 4 in. Round Duct, 150CFM, 120Vac

APPLICATIONS

DBF 4XLT is a duct booster fan designed for boosting air on in applications such as extended ductwork, crawlspace ventilation, and dryer exhaust. The product is equipped with 5 feet cord, indicator panel to indicate status of product operation and pressure-sensing switch that activates the fan once positive pressure is sensed in the duct line. The switch shuts the fan off when the pressure differential falls below the activation level.

FEATURES & BENEFITS

• Suitable for 4” ductwork
• Metal leak-proof housing
• Pressure switch, indicator panel, 5 ft cord for 120V/1~
• Duct runs up to 130 linear feet
• The DBF 4XLT features a galvanized metal housing, pressure-sensing switch, indicator panel and a 5 feet cord for 120V/1~ connection. Suitable for 4” ductwork.
• Performance certified by HVI; Conforms to UL Standard 507.
• Voltage (nominal): 120V
• Frequency: 60Hz
• Phases: 1
• Input power: 72W
• Input current: 0.73A
• Impeller speed: 2,559rpm
• Rated Air Flow: 150cfm
• Air flow Max: 173cfm
• Temperature of transported air: max 140 °F
• Max temperature of transported air, when speed controlled: 140 °F
• Enclosure class, motor: IP44
• Insulation class: B
• Duct dimension; Circular, inlet: 4 in.
• Duct dimension; Circular, outlet: 4 in.
• Weight: 7.7 lbs
• Duct connection type: Circular
• MATERIAL: Metal
