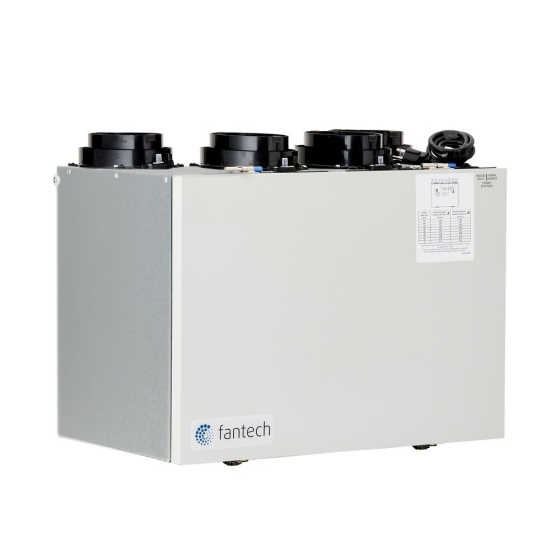

Fantech® Energy Recovery Ventilator 5 in. Oval Ducts, 100CFM, 120Vac

FEATURES

Fantech's VER 100 is an Energy Recovery Ventilator designed for higher static pressure applications. The unit brings a continuous supply of fresh air into a home while exhausting an equal amount of contaminated air. The energy recovery core at the center of the unit transfers heat and moisture from incoming air to the outgoing air that was cooled and dried by the building's air conditioner.

• 5" (125mm) oval duct connections with integrated airflow measurement
• Compact design, only 21.5" (546 mm) wide
• Includes EZ-Mount wall bracket
• Fans with backward curved blade
• ERV transfers both heat and humidity
• Anti-microbial material
• Withstands freezing
• Electrostatic filters (washable)
• Removable screw terminal for easy connection
• Easy Core Guide Channels For Removing Core
• Only weighs 36 lbs (16.27Kg)

Fans
Two factory-balanced fans with backward curved blades. Motors come with permanently lubricated, sealed ball-bearings to guarantee long life and maintenance-free operation.

Energy Recovery Core
Energy recovery core made from water vapor transport durable polymer membrane that is highly permeable to humidity. The ERV core is freeze tolerant and water washable. Core dimensions are 8.4 x 8.4” (213 x 213 mm) with a 15” (381 mm) depth.

Defrost
A preset frost prevention sequence is activated at an outdoor air temperature of 14°F (-10°C) and lower. During the frost prevention sequence, the supply blower shuts down and the exhaust blower switches into high speed to maximize the effectiveness of the frost prevention strategy. The unit then returns to normal operation and continues cycle.

Serviceability
Core, filters, fans, drain pan and electrical panel can be accessed easily from the access panel. Core conveniently slides out with only 14” (432 mm) clearance.

Case
22 gauge galvanized steel cabinet with a pre-painted steel corrosion resistant door.

Insulation
Cabinet is fully insulated with 1” (25 mm) foil-face high density expanded polystyrene.

Filters
Two (2) washable electrostatic panel type air filters 8.5” (216mm) x 12.5” (318 mm) x 0.125” (3mm).

Controls
External three (3) position (Low/Stand By/Medium) rocker switch that will offer continuous ventilation. Fantech offers a variety of external controls.

Installation
Unit is typically installed using supplied wall bracket.

Warranty
5 years on energy recovery core, 7 year on motors, and 5 year on parts.

SPECIFICATIONS

• Duct size – 5" (125 mm) oval
• Voltage/Phase – 120/1
• Power rated – 172 W
• Amp – 1.6 A
• Average airflow – 124 cfm (59 L/s) @ 0.4" Ps (100Pa)
