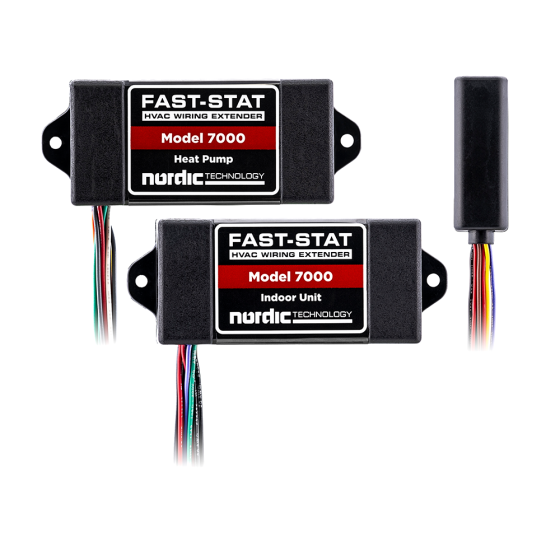

FAST-STAT Model 7000 Wiring Extender 24Vac

APPLICATIONS

The Model 7000 extends the wiring between a heat pump, indoor unit, and thermostat when upgrading from an air conditioner.

FEATURES & BENEFITS

• Provides R, C, G, Y1, Y2, W, and O/B over the 4-wire thermostat cable, and Y1, Y2, O/B, and W over the 2-wire condenser cable.
• If the thermostat cable does not require more wires, a Model 9000 can be used to extend only the wiring from the indoor unit to heat pump.
• This product should only be installed by a qualified technician.
• Requires a Class 2 transformer providing 23-38VAC.
• The total connected load cannot exceed 2 amps.
• The connected load cannot operate at more than 30VAC (not designed for direct connection to 120VAC equipment).
