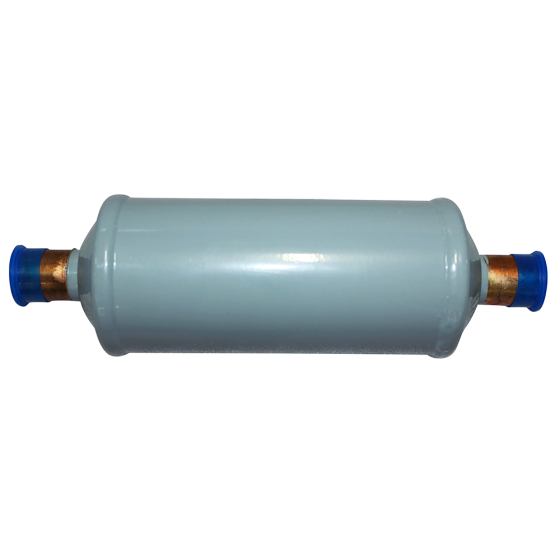

Totaline® Filter Drier

Item

P502-C307S

Skip to the beginning of the images gallery

FEATURES & BENEFITS

• Economy solid core liquid line filter drier ideal for use w/CFC & HCFC refrigerants
• Solid copper fittings
• High moisture and acid removal
• Corrosion resistant paint
• Shock resistant steel shell construction
• Desiccant Blend: Activated Alumina with molecular sieve
• Max. working press: Sizes 03-75, 680 psig UL/CUL file number: SA3124
• Filtration: 40 microns

Specifications

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	2.75
Exterior Dimensions (D) (inches)	3.350000
Exterior Dimensions (W) (inches)	11.400000
Exterior Dimensions (H) (inches)	3.400000
Shipping Weight (lbs)	2.750000
