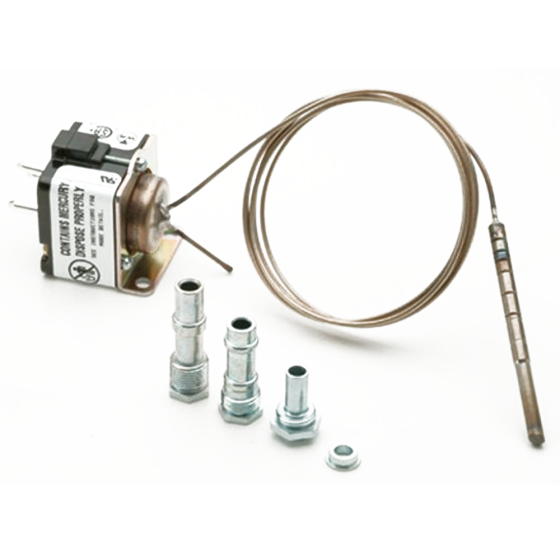

Cycle-Pilot Mercury Flame Sensor
Item
3098-134
APPLICATIONS
• Cycle Pilot Mercury Flame Sensors designed for 36C84 and 36C94 gas valves include adapters for competitive burners.
• Replaces bulb styles #9 or #13.
FEATURES & BENEFITS
• Bulb style designed to fit original equipment applications.
• Adapter fittings for competitive burners included.
• Maximum Temperature: 1450 degrees F at the tip
• Approvals: CSA Approved
• Capillary Length: 48"
• Panel Type: E
• Bulb Style: #19
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 5.000000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 2.000000 | Shipping Weight (lbs) | 1.000000 |
