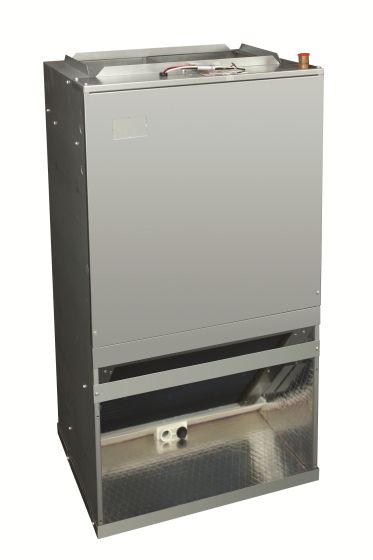

APARTMENT FAN COILS
ALL MODELS
• 1-1/2, 2, 2-1/2, and 3 Tons.
• Upflow application only.
• Accessory field-installed electric heat kits available in 5, 7.5, or 10 kW.
• 208/230-1-60 supply voltage.
• Cabinet exterior is galvanized sheet metal.
• Cabinet air leakage rate below 1.4% when tested to ASHRAE Standard 193.
• Insulated for conditioned space. (not to be installed in unconditioned spaces)
• All Aluminum coils.
FMA4P
• For use with R-410A refrigerant utilizing standard piston.
FMA4X
• R-410A refrigerant, TXV standard.
PERFORMANCE
• PSC motor on all FMA4P.
• ECM motor on all FMA4X.
• Motor suspended on rubber grommets for quieter operation.
• Fresh air intake knockouts in cabinet.
EASY TO INSTALL AND SERVICE
• Units fits between standard stud spacings.
• All service access is located in the front.
• Primary and secondary drain connections exit from the bottom, access panel in bottom of cabinet.
• No return-air ductwork required in specific applications.
• Wall hanging brackets included with the unit.
