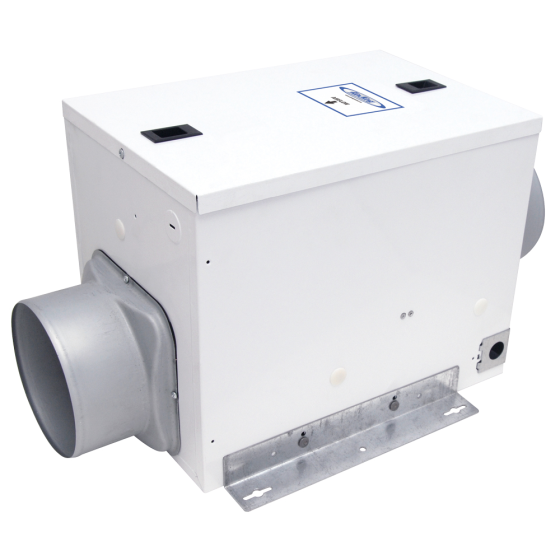

Air King® Fresh Air Supply 6 in. Round Duct, 30 to 130 CFM, 115/120Vac

APPLICATIONS

The F130D Fresh Air Supply unit offers home builders and developers a cost effective mechanical fresh air solution. Contractors and builders now have a practical offering for introducing constant fresh air from outside into the residence, meeting the fresh air CFM requirements. The operator simply dials in the quantity (CFM) of fresh air needed from the quiet energy efficient fan. Optional MERV8 to MERV16 air filters can be added to the F130D fresh air supply for even better indoor air quality. In addition, the F130D offers one of the industry’s highest efficiency ratings for air intake products, is ENERGY STAR® certified as well as being recognized as a ENERGY STAR® Most Efficient 2023 product.

FEATURES & BENEFITS

• Nearly silent operation, homeowner may not even know it is operating
• Accepts 10″ x 10″ x 2″ MERV16 filter through easy access filter door
• Unit mounted “off” switch
• Durable white epoxy finish
• Excellent ASHRAE 62.2 solution for fresh air (learn more)
• ENERGY STAR® Certified
• HVI Certified performance
• ETL listed
• CFM Settings @ 0.2″ SP: Variable 30 – 130
• Achievable CFM at other SP levels: See Specification Sheet
• Sones: N/A
• Sound Level: Very Quiet
• Maximum Fan Watts: 26.0
• ASHRAE 62.2 Ventilation: Fresh Air Supply
• ENERGY STAR® certified: Yes
• Can be used to Comply with California Title 24 requirements: N/A
• CALGreen: N/A
• Duct Size: 6″ round
• Collar: Metal
• Mounting: Mounting Bracket
• Housing: Metal

Blower Wheel
Balanced polymeric dual inlet blower wheel secured in place using a hex nut.

Adjustable Capacity Motor
Variable capacity settings allow the fan to be set from 30 to 130 CFM 4 pole ECM motor, permanently lubricated, thermally protected 115/120V 60 Hz., 0.50 amps.
Fan Efficacy: 5 CFM/Watt at 130 CFM, 0.2" SP.
Static Pressure Range: Up to 0.4" SP.

Fan Housing
Insulated 26 gauge baked epoxy housing. Overall dimensions: 14-7 /8 "H x 11-1 /2 "D x 10-1/8"W.

Duct Collars
6" round, zinc plated metal collar adapters.

Electrical Connections
0.5" electrical access. Easy wiring access via external wiring compartment cover or internal access plate.

Unit Mounting
Designed to surface mount to a wall or ceiling with the included mounting brackets. Can be mounted onto joists, studs or the housing mounting brackets can be adapted for overhead mounting (hardware not provided).

Optional Air Filter
An optional 10" x 10" x 2" air filter can be added to the unit (not included).

Test Port
Allows easy air flow measurement with Pitot tube or similar device.

INCLUDES

• Insulated 26 gauge baked epoxy housing
• Blower (motor)
• Hanger brackets for surface mounting
• Duct collars
• User manual
