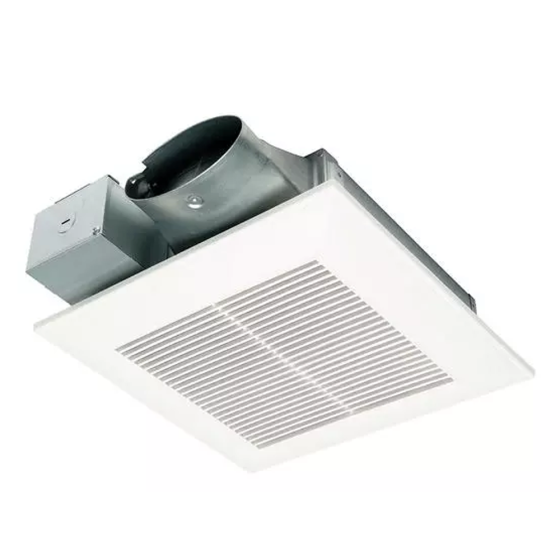

The Panasonic WhisperValue® FV-0510VS1 ENERGY STAR® Certified Ventilation Fan is the lowest profile ENERGY STAR® rated ventilation fan available. Ideal for residential construction (Single; Multi-Family) and Manufactured Homes. It features Panasonic’s revolutionary ECM motor with SmartFlow™ optimum CFM technology, and incorporates a Pick-A-Flow™ airflow selector switch to customize airflow (50, 80 or 100 CFM).
FEATURES & BENEFITS
• Precision spot ventilation fan, ideal for residential construction (single and multifamily) and manufactured homes • Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output • Pick-A-Flow™ Airflow Selector – one fan, you choose the CFM (50, 80 or 100 CFM) • Air Volume Exhaust (CFM): 50 @ 0.1" SP, 53 @ 0.25" SP, 80 @ 0.1" SP, 81 @ 0.25" SP, 100 @ 0.1" SP, 100 @ 0.25" SP • CFM: 50-70. 80-110 • Other Approved Codes and Standards: ASHRAE 62.2, LEED, California Title 24, Washington VIAQ • Current (Amps): 50 CFM= .09A, 80 CFM= .13A, 100 CFM=.20A • Duct Diameter: 4" Oval • Energy Efficiency (CFM/Watt): 50 CFM= 12.8 CFM/W, 80 CFM=11.4 CFM/W, 100 CFM = 9.2 CFM/W • ENERGY STAR® Certified: Yes • Grille Size (in sq.): 13" • Motor Type (AC/DC): DC • Mounting Opening (in sq.): 10-1/2" • Mounting Options: Ceiling Mount (UL). Wall Mount (UL). Tub/Shower (UL) • Noise (Sones): 50 @ 0.1" SP = 0.3, 53 @ 0.25" SP = 0.5, 80 @ 0.1" SP = less than 0.4, 81 @ 0.25" SP = 0.8, 100 @ 0.1" SP = 0.9, 100 @ 0.25" SP = 1.3 • Power Consumption (Watts): 50 CFM= 4.4W, 80 CFM= 7.2W, 100 CFM=11.1W • Power Rating (Vac/Hz): 120/60 • Radiation Damper Available: Yes • UL Listed for Tub/Shower Enclosure when GFCI Protected: Yes • Warranty: 6 year DC Motor, 3 Year Parts
Motor/Blower • Enclosed brushless ECM motor technology rated for continuous run. • Fan ventilation rates shall be manually adjustable for 50-80-100 CFM. • Power rating shall be 120 volts and 60 Hz. • Fan shall be UL and cUL listed for tub/shower enclosure when GFCI protected and used in insulated ceiling (TYPE I.C.). • PCB board equipped with thermal–cutoff fuse. • Removable with permanently lubricated plug-in motor.
Housing • 26 gauge galvanized steel body. • Built-in 4" Oval duct collar. Also compatible with 4" round duct. • Optional 24 gauge steel, fire code rated 4" oval to 3" round duct adaptor sold separately (Model # FV-VS43R). • Built in backdraft damper. • Built-in metal flange provides blocking for penetrations through drywall as an Air Barrier, and assists with the decrease in leakage in the Building Envelope during blower door testing. • Unique L-shaped bracket simplifies installation and provides strong support.
Ceiling Radiation Damper • WhisperValue DC is UL listed for use with the Panasonic Ceiling Radiation Damper (Model #: PC-RD05C5, sold separately).
Grille • Attractive design using Poly Pro material. • Attaches directly to housing with torsion springs.
Warranty • ECM Motor: 6 Years from original purchase date. • ALL Parts: 3 Years from original purchase date.
