APPLICATIONS

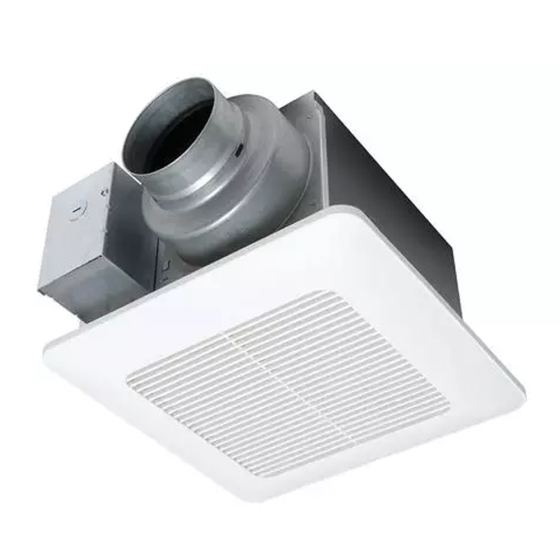

The Panasonic WhisperCeiling® FV-0511VQ1 ENERGY STAR® Certified Ventilation Fan with built-in Pick-A-Flow™ speed selector switch allows you to select your required airflow (50-80-110 CFM). Features a ECM Motor with SmartFlow® technology and a Flex-Z Fast installation bracket. Can be used to comply with the latest codes and standards.
FEATURES & BENEFITS
• Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output
• Pick-A-Flow™ Speed Selector – one fan, you choose the CFM (50, 80, 110 CFM models)
• Flex-Z Fast bracket provides flexible, fast & trouble-free installation, even from below the ceiling
• Lighted models incorporate one long-life, 10W dimmable LED chip panel with 1W LED night light for warm, energy efficient illumination
• Elegant grille design compliments the aesthetics of any bathroom
• Air Volume (CFM): 110, 111, 80, 83, 50, 53
• California Title 24 Compliant: Yes
• Current (Amps): 0.18, 0.26, 0.11, 0.18, 0.07, 0.13
• Duct Diameter: 4" or 6"
• Energy Efficiency (CFM/Watt): 10.6, 6.9, 13.6, 7.7, 12.5, 7.4
• ENERGY STAR® Certified: Yes
• Grille Size (in sq.): 13"
• Gross Weight (lbs): 11.0
• MAX. Current (Amps): 0.27
• Mfg in ISO 9001 Certified Facility: Yes
• Motor Type (AC/DC): DC
• Mounting Opening (in sq.): 10-1/2"
• Noise (Sones): 0.3, 0.9, 0.3, 0.6, 0.3, 0.4
• Power Consumption (Watts): 10.6, 16.4, 5.9, 10.8, 4.0, 7.2
• Power Rating (Vac/Hz): 120/60
• Speed (RPM): 1342, 1480, 1016, 1268, 867, 1185, 768, 1097
• Static Pressure in inches w.g.: 0.1, 0.25, 0.1, 0.25, 0.1, 0.25
• Thermal Fuse Protection: Yes
• Type of Motor Bearing: Ball
• UL Listed for Tub/Shower Enclosure when GFCI Protected: Yes
• UL tub/Shower Enclosure: Yes
• Washington VIAQ Code: Yes
Motor/Blower
• Enclosed brushless ECM motor technology rated for continuous run.
• Fan ventilation rates shall be manually adjustable for 50-80-110 CFM.
• Power rating shall be 120 volts and 60 Hz.
• Fan shall be UL and cUL listed for tub/shower enclosure when GFCI protected.
• Motor equipped with thermal–cutoff fuse.
• Removable with permanently lubricated plug- in motor.
Housing
• 26 gauge Zinc-Aluminum-Magnesium (ZAM) housing
• Integrated dual 4" or 6” diameter duct adapter.
• Built-in damper reduces back drafting and helps with blower door testing.
• Built-in metal flange provides blocking for penetrations through drywall as an Air Barrier, and assists with the decrease in leakage in the Building Envelope during blower door testing.
• Articulating and expandable installation bracket up to 24".
Ceiling Radiation Damper
• WhisperCeiling® DC™ is UL listed for use with the Panasonic Ceiling Radiation Damper (Model #: PC-RD05C5, sold separately).
• Grille
• Attractive design using Poly Pro material.
• Attaches directly to housing with torsion springs.
Warranty
• ECM Motor: 6 Years from original purchase date.
• ALL Parts: 3 Years from original purchase date.
