APPLICATIONS

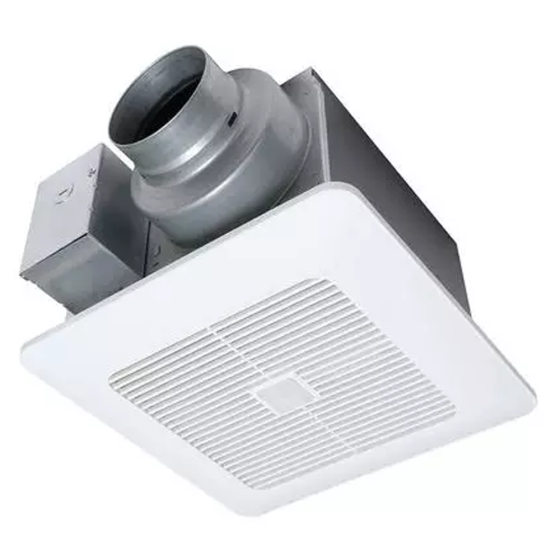

The Panasonic WhisperSense® DC™ FV-0511VQC1 Ventilation Fan with built-in Dual Sensor Technology (Motion & Moisture) for automatic moisture and odor control. Features Pick-A-Flow™ speed selector switch to select required airflow (50-80-110 CFM) and ECM Motor with SmartFlow® technology for optimum performance. Can be used to comply with the latest codes and standards.
FEATURES & BENEFITS
• Precision spot ventilation fans ideal for use in the bathroom, laundry room, mud room, basement or garage
• Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output
• Pick-A-Flow Speed Selector (50-80-110 CFM) combined with SmartFlow™ Technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks
• Dual Sensor Technology (Motion & Moisture) provides built-in redundancy for the ultimate in automatic moisture and odor control
• Flex-Z Fast bracket provides flexible, fast & trouble-free installation, even from below the ceiling
• Static Pressure: 0.1, 0.25, 0.1, 0.25, 0.1, 0.25
• Air Volume (CFM): 110, 111, 80, 83, 50, 53
• Noise (Sones): 0.3, 0.9, 0.3, 0.6, 0.3, 0.4
• Power Consumption (Watts): 10.6, 16.4, 5.9, 10.8, 4.0, 7.2
• Energy Efficiency (CFM/Watt): 10.6, 6.9, 13.6, 7.7, 12.5, 7.4
• Speed (RPM): 1342, 1480, 957, 1239, 821, 1172, 756, 1093
• Current (Amps): 0.18, 0.26, 0.11, 0.18, 0.07, 0.13
• Power Rating (Vac/Hz): 0.27
• Motor Type (AC/DC): DC
• Duct Diameter: 4" or 6" Round Duct
• Mounting Opening (in sq.): 10-1/2"
• Grille Size (in sq.): 13"
• Type of Motor Bearing: Ball
• Thermal Fuse Protection: Yes
• UL tub/Shower Enclosure: Yes
• Washington VIAQ Code: Yes
• California Title 24 Compliant: Yes
• Mfg in ISO 9001 Certified Facility: Yes
• Gross Weight (lbs): 11.2
• ENERGY STAR Qualified: Yes
Motor/Blower
• Enclosed brushless ECM motor technology rated for continuous run.
• Fan ventilation rates shall be manually adjustable for 50-80-110 CFM.
• Power rating shall be 120 volts and 60 Hz.
• Fan shall be UL and cUL listed for tub/shower enclosure when GFCI protected.
• Motor equipped with thermal–cutoff fuse.
• Removable with permanently lubricated plug-in motor.
Housing
• 26 gauge Zinc-Aluminum-Magnesium (ZAM) housing.
• Integrated dual 4” or 6” diameter duct adapter.
• Built-in damper reduces back drafting and helps with blower door testing.
• Built-in metal flange provides blocking for penetrations through drywall as an Air Barrier, and assists with the decrease in leakage in the Building Envelope during blower door testing.
• Articulating and expandable installation bracket up to 24".
Ceiling Radiation Damper
• WhisperSense DC is UL listed for use with the Panasonic Ceiling Radiation Damper (Model #: PC-RD05C5, sold separately).
Grille
• Attractive design using Poly Pro material.
• Attaches directly to housing with torsion springs
Warranty
• ECM Motor: 6 Years from original purchase date.
• ALL Parts: 3 Years from original purchase date.
