Natural Gas to Propane Conversion Kit
Item
KGANP2801F80
FEATURES
The KGANP2801F80 Gas Conversion Kit is designed to convert furnaces from natural gas usage to propane gas usage. (See the installation instructions for compatibility.)

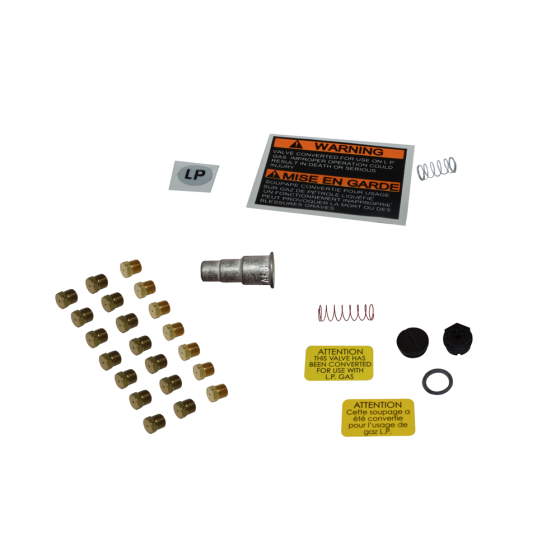

INCLUDES
• 1 Regulator Spring Kit (White Propane) for White-Rodgers 36E Valve (EF39ZW023)• 1 Regulator Spring Kit for Honeywell VR8200 Gas Valve (EF39ZW025)
• 1 Pilot Orifice Honeywell (LH32AN102)
• 7 Main Burner Orifice (Drill Size No. 54) (LH32DB203)
• 7 Main Burner Orifice (Drill Size No. 55) (LH32DB201)
• 7 Main Burner Orifice (Drill Size No. 1.25 mm) (LH32DB209)
• 1 Conversion Rating Plate Label Non-Condensing Furnaces (326106-201)
• 1 Conversion Rating Plate Label-Condensing Furnaces (326106-203)
• 1 Conversion Responsibility Label (326106-204)
• 1 Gas Control Conversion Label (326106-202)
• 1 Installation Instructions
| Safety Standards | |
|---|---|
| California Prop 65 | Yes | Hazardous Material | No |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 4 | Exterior Dimensions (D) (inches) | 7.000000 | Exterior Dimensions (W) (inches) | 5.000000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 4.000000 |
