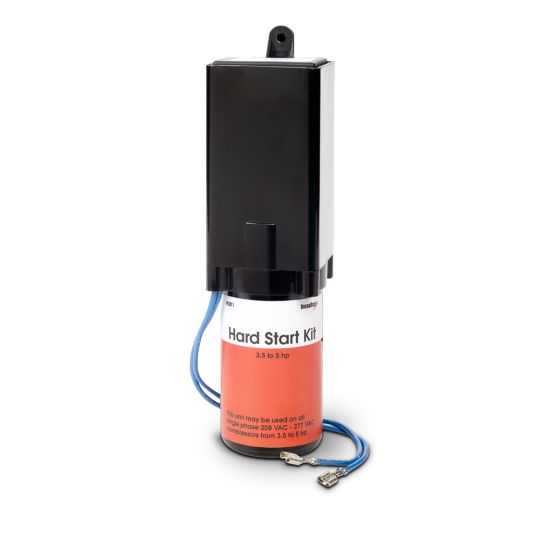

DiversiTech® Hard Start Kit for 3-1/2 to 5 Tons, 270-324µF, 330v
Item
HSK1
PRODUCT DETAILS
DiversiTech hard start kits reduce contractor call backs by boosting the starting capacitor for a compressor. This prevents home brownouts and improves homeowner satisfaction with your service.
DiversiTech's hard start kits feature a potential relay that disconnects the start capacitor from the circuit at exactly the moment it is no longer needed to boost the compressor. This results in a precision compressor start even under hard starting conditions.
APPLICATIONS
• 3.5–5 HP single phase compressors from 208 – 277 VAC.FEATURES & BENEFITS
• 270 – 324 μF.• 330V.
• Simple 2 wire.
| Electrical | |
|---|---|
| Voltage | 330 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Cap Type | Hard Start Kits | Microfarad Rating | 270-324µF |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 3 | Exterior Dimensions (D) (inches) | 3.000000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 7.000000 | Shipping Weight (lbs) | 3.000000 |
