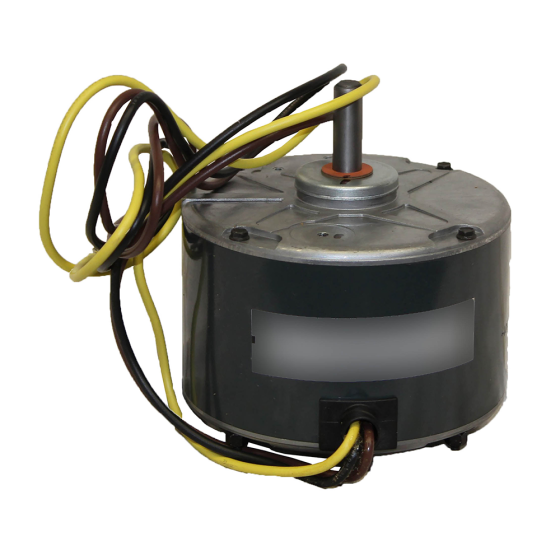

Condenser Fan Motor 1/6HP, 1500RPM, 208/230Vac, 0.90A, 5µF/370Vac, 1 Speed, (PSC)
Item
HC33GE208
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/6
• RPM: 1500
• Number of Speeds: 1
• Rotation: Clockwise (Lead End)
• Voltage: 208/230Vac
• Amperage: 0.90
• Capacitor: 5µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Sleeve
• NEMA Frame Size: 39
• Totally Enclosed, Air Over (TEAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Shaft Size: 0.50 x 1.50
SUPERSEDES FROM
• HC38GE208
Specification | |
---|---|
Bearing Type | Sleeve | Motor Frame | 39 | Motor HP | 1/6 | Motor Type | PSC | Number of Speeds | 1 | Rotation | CW LE | RPM | 1500 | Shaft Diameter | 0.50 | Shaft Length | 1.50 |
Electrical | |
---|---|
Amps | 0.9 | Hertz | 60 | Voltage | 208/230 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 16.3 | Exterior Dimensions (D) (inches) | 5.700000 | Exterior Dimensions (W) (inches) | 5.500000 | Exterior Dimensions (H) (inches) | 6.200000 | Shipping Weight (lbs) | 17.050000 |
Warranty | |
---|---|
Country of Origin | Mexico |
