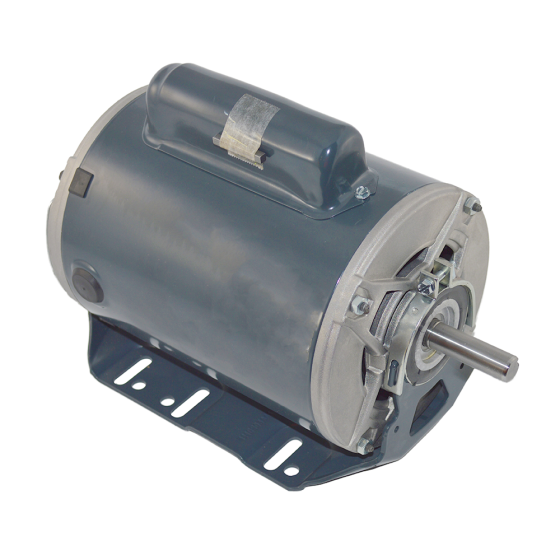

Belt Drive Blower Motor 1HP, 3450/2850RPM, 115/208/230Vac, 13.4/6.7A, 40 °C, (PSC)
Item
HC52DL756
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
| Specification | |
|---|---|
| Motor Frame | 56H | Motor HP | 1 | RPM | 3450 |
| Electrical | |
|---|---|
| Amps | 13.4 | Hertz | 60 | Voltage | 115/208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 32.25 | Exterior Dimensions (D) (inches) | 14.100000 | Exterior Dimensions (W) (inches) | 7.800000 | Exterior Dimensions (H) (inches) | 8.800000 | Shipping Weight (lbs) | 33.000000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico | Parts Warranty | 1 Year |
