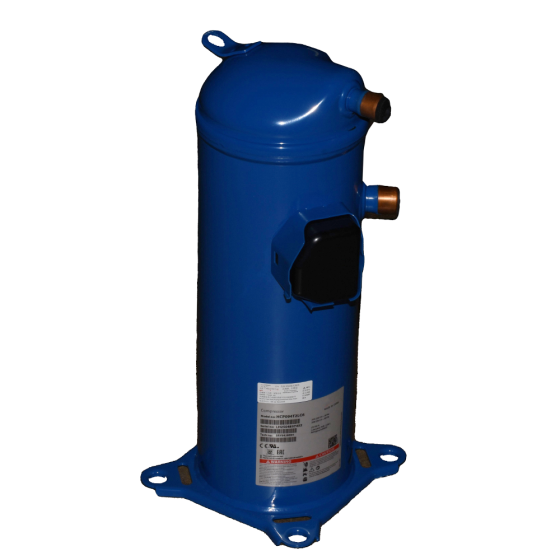

Danfoss Hermetic Scroll Compressor 407C, 88,425BTU, 208/230Vac, Three Phase
Item
HCP094T2LC6
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 88,425
• Refrigerant: 407c
• Screw Terminals
• Oil: PVE (Polyvinyl ether)
• Voltage: 208/230
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• RLA: 25.6
• Hertz: 60
• Suction Line Size: 1-1/8"
• Discharge Line Size: 7/8"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 25.6 | Voltage | 208/230 |
| Specification | |
|---|---|
| Refrigerant | R407C | Compressor Type | Scroll | BTU Rating | 81 to 90kBTU | Discharge Line Size | 7/8" | Oil | PVE (Polyvinylether) | BTU Output | 95000 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 54 | Exterior Dimensions (D) (inches) | 13.200000 | Exterior Dimensions (W) (inches) | 14.800000 | Exterior Dimensions (H) (inches) | 20.100000 | Shipping Weight (lbs) | 90.000000 |
| Warranty | |
|---|---|
| Country of Origin | China |
