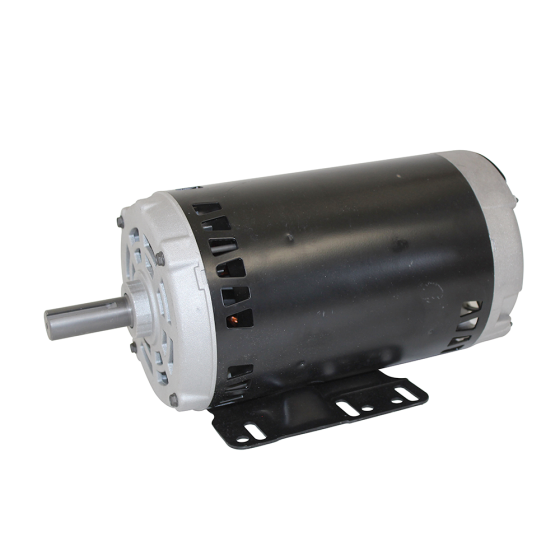

Belt Drive Blower Motor 3HP, 1750RPM, 208/230/460Vac, 9.4/8.9/4.5A
Item
HD680018
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
| Specification | |
|---|---|
| Bearing Type | Ball | Motor Frame | 56HZ | Motor HP | 3 | RPM | 1750 | Shaft Diameter | 0.875 | Shaft Length | 2.31 |
| Electrical | |
|---|---|
| Amps | 9.4 | Hertz | 60 | Voltage | 208/230/460 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 39.65 | Exterior Dimensions (D) (inches) | 14.500000 | Exterior Dimensions (W) (inches) | 12.200000 | Exterior Dimensions (H) (inches) | 6.600000 | Shipping Weight (lbs) | 41.400000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico | Parts Warranty | 1 Year |
