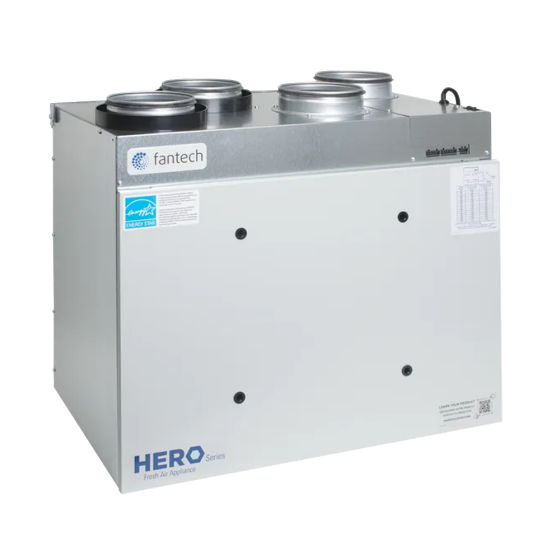

Fantech® HERO Heat Recovery Ventilator 6" Round Ducts, 250CFM, 120Vac

FEATURES

Fantech’s most efficient series yet! The HERO 250H-EC is ideal for high-rise apartment applications, condominiums, single and multi-family homes. With a completely new design the HERO 250H-EC features a Counterflow core, round metal collars and a high efficiency rating!

EC motors use intelligent technology with integral electronic controls to ensure energy savings no matter what the airflow demands. Reduced energy usage results in lower operating costs. The motors develop less heat so significantly less maintenance is needed and the lifetime of the motor is increased.

• Electronically commutated motors (ECM)
• 6” (152mm) round metal duct connections with rubberized duct seals
• Removable screw terminal for easy connection with external access
• Top port design fits in tight spaces
• Includes wall mounting speed bracket
• Counterflow heat recovery core
• Multiple speed operation
• Internal recirculation defrost
• 58 lbs (26.09 kg) including core

Fans
Two electronically commutated motors. The EC fans operate at high efficiency levels and offer a great energy-saving potential not only at full load, but especially at part-load. When operating at part-load, the energy used is much lower than with an AC motor of equivalent output. Reduced energy usage guarantees a drop in operating costs.

Heat Recovery Core
Counterflow heat recovery exchanger built from thermoformed polymer plates covered by a limited lifetime warranty. Core dimensions are 14.4” x 14.4” (366 x 366 mm) with a 14” (355 mm) depth. Our heat exchangers are designed and manufactured to withstand extreme temperature variations.

Winterguard™ Defrost
The unit incorporates a unique and quiet internal recirculation defrost that does not depressurize the home during the defrost cycle. A preset defrost sequence is activated when the outdoor temperature falls below 23° F (-5° C) and automatically adjusts itself based on operating conditions. The fan speed is also adjusted automatically to provide a smooth and quiet transition between Ventilation & Defrost mode.

Serviceability
Core, filters, fans and electronic panel can be accesses easily from the access panel. Core conveniently slides out with only 16” (406 mm) clearance.

Duct Connections
6” (152mm) round metal duct connections with rubberized seal. Case 22 gauge galvanized steel cabinet with a pre-painted steel corrosion resistant door.

Insulation
Cabinet is fully insulated with 3/4” (20 mm) high density expanded polystyrene.

Filters
Two (2), UL900 certified, washable electrostatic panel type air filters 7.87” (200mm) x 13.77” (350mm) x 0.125” (3mm).

Balancing and commissioning
Balancing must be completed using the Fantech ECO-Touch® Programmable Touch Screen Wall Control

Warranty
Limited lifetime on counterflow exchanger, 7 year on motors, and 5 year on parts.

SPECIFICATIONS

• Duct size – 6” (152mm) round
• Voltage/Phase – 120/1
• Power rated – 260 W
• Amp – 6.4 A
• Average airflow – 252 cfm (119 L/s) @ 0.4” Ps (100 Pa)
