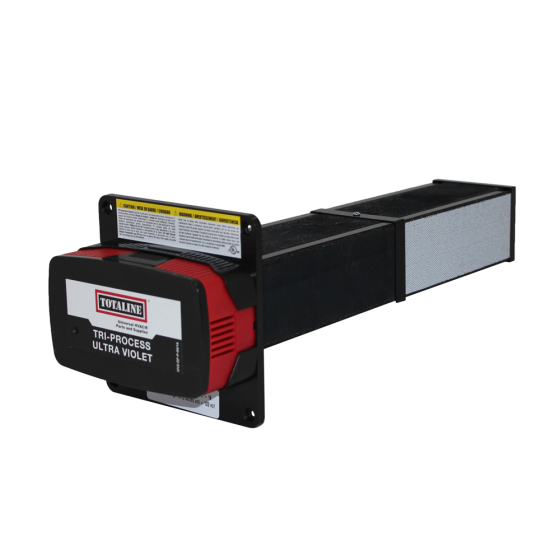

Totaline® Dual UV Germicidal Purification Lamp with Carbon Matrix & PCO 16", 24/120V, 36W (Hi-Temp)

FEATURES

The Totaline® Ultraviolet System with Carbon Matrix & PCO is a unique indoor air treatment and odor absorption system. It utilizes multiple processes to help reduce airborne microorganisms, odors, gases and Volatile Organic Compounds (VOC’s). This combination works on your air in three distinct ways. UVC Germicidal works on airborne bacteria, viruses & molds including coil treatment. The Carbon Matrix cells work to absorb odors & VOC’s in combination with, the PCO Spiroplate Sterilizer oxidation system. This unique combination helps enhance air cleansing throughout the indoor living space. This technology is ozone free for a natural 3 way air cleansing process.

The Totaline® Ultraviolet system features 9000 hours UVC Germicidal lamps & replaceable matrix media’s. Periodic maintenance & replacement is recommended.

Dual Voltage 24/120V operation
Ideal for ducted systems

Dual 254 Nm, 36 watt lamps
Higher UVC output

Tri-process air treatment
UVGI, absorption & oxidation

Large, active surface area
Enhanced odor & gas treatment

Replaceable carbon & PCO matrix
Ensures long term performance

“Smart light” system indicator
Confirms operation visually

Microprocessor LCD display
Programmable & communicates

High temperature models
For high ambient installations

Ozone free
Optimized for safety

SPECIFICATIONS

• Electrical Power: 120V
• High Temp: Yes
• Lamp Length: 16” (15.25”)
• Lamp Life (Hours): 9,000
• Lamp Wattage: 36
• Lamp Type: 254 Nm
• UV Output (uw/cm @ 2.5’): 254
• Amp Draw: 0.35
• Replacement UV Lamp: UV2-GF-16S-LP
