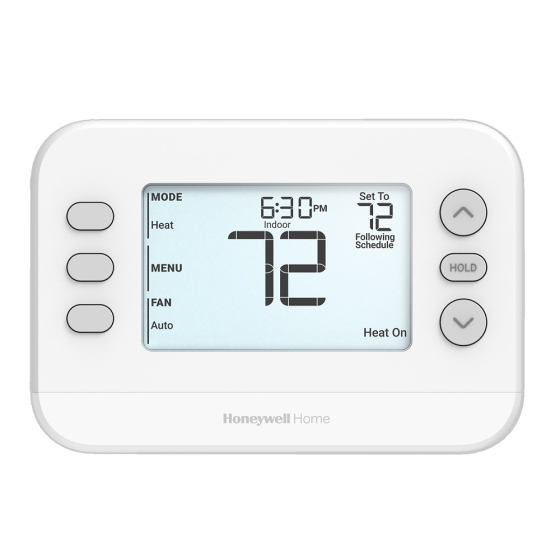

The Honeywell Home FocusPRO® P200 is designed for pro ease-of-use and profitability. It reduces job complexities and time on-site while supporting recurring business thanks to its broad system compatibility, UWP® wall plate, large display and clear font, snap-on private label, and competitive price.
• Supports single-stage heat pump and conventional
• UWP® wall plate supports speedy installation and easy upgrade
• Private label with customized snap-on accent piece
• Flexible scheduling in 5-1-1 day, 5-2 day, 7 day, or 1 week increments, or turn scheduling off
• Large display with clear font
• Optional always-on backlight when hardwired
• Customizable display settings
• Intuitive interface for easy navigation
• Choose to receive filter reminders
• Heat low limit defaults to 40°F (4°C) but configurable to 32°F (0°C) for garage applications
• Dual fuel compatible*
• Wired outdoor sensor compatible*
• Fan lockout after cool call option
• 5-year warranty
SPECIFICATIONS
• Application: 24 Vac heat + cool systems. Gas, Oil, Electric, or Steam/Radiant hot water Systems. Heat pumps without Auxiliary heat.
• Dimensions (in.): 5.125 in. W x 3.438 in. H x 1.188 in. D
• Dimensions (mm): 130 mm W x 87 mm H x 29.5 mm D
• Mounting: UWP Mounting System
• Electrical Ratings: 20 to 30 Vac
• Frequency: 60 Hz
• Stages: Up to 1 Heat /1 Cool Conventional Systems; Up to 1 Heat/1 Cool Heat Pump Systems
• Electrical Connections: UWP Mounting System
• Operating Humidity Range (% RH): 5 to 90% RH, non-condensing
• Supply Voltage: 20 to 30 Vac
• Switch Positions (System): HEAT-OFF-COOL-AUTO
• Switch Positions (Fan): AUTO-ON-CIRC
• Operating Temperature Range (F): 32 °F to 120 °F
• Operating Temperature Range (C): 0 °C to 48.9 °C
• Shipping and Storage Temperature Range (F): - 20 F to 120 F
• Shipping and Storage Temperature Range (C): - 28.9 C to 48.9 C
