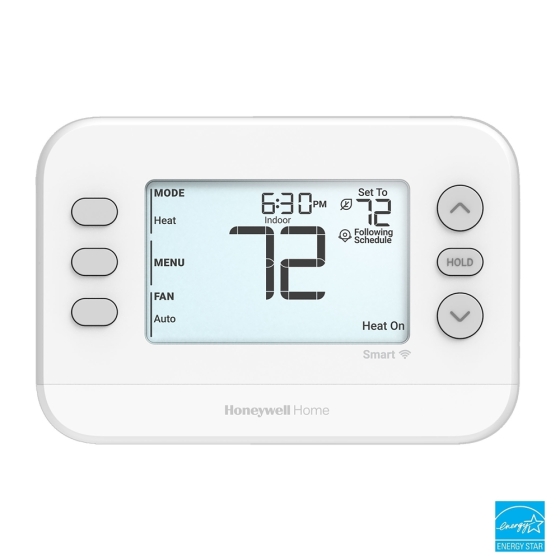

Honeywell® FocusPRO® S200 7/5+1+1/5+2 Day Programmable Smart Thermostat with Wi-Fi 1H/1C (1H/1C HP), 24Vac

FEATURES

The Honeywell Home FocusPRO® S200 is ENERGY STAR® certified and designed for pro ease-of-use and profitability. It reduces job complexities and time on-site while supporting recurring business thanks to its broad system compatibility, UWP® wall plate, large display and clear font, snap-on private label, and competitive price.

• Supports single-stage 1H/1C heat pump and conventional

• UWP® wall plate supports speedy installation and easy upgrade

• Private label with customized snap-on accent piece

• Option to configure thermostat using the Resideo Pro app without referencing an ISU table

• Flexible scheduling in 5-1-1 day, 5-2 day, 7 day, or 1 week increments, or turn scheduling off

• Geofence technology

• Demand response capable

• 2.4GHz or 5GHz Wi-Fi connection

• Homeowners can control from anywhere using the First Alert by Resideo app

• Works with Google Assistant and Amazon Alexa

• Large, bright display with clear font

• Optional always-on backlight

• Customizable display settings

• Intuitive interface for easy navigation

• Choose to receive filter reminders

• Heat low limit defaults to 40°F (4°C) but configurable to 32°F (0°C) for garage applications

• Fan lockout after cool call option

• ENERGY STAR certified

• 5-year warranty

SPECIFICATIONS

• Application: 24 Vac heat + cool systems. Gas, Oil, Electric, or Steam/Radiant hot water Systems. Heat pumps without Auxiliary Heat.

• Thermostat Type: Smart, Wi-Fi, Programmable, Digital

• Stages: 1 Heat /1 Cool Conventional Systems, 1 Heat /1 Cool Heat Pump Systems

• Terminal Designations: RC, R, C, W, Y, O/B, G, K, L

• Display Type: LCD Screen

• Display Size: 4.84 sq. in.

• Display Language: English

• Displayed Information: Mode, Current Temperature, Set Temperature, Status Display, Fan, Time

• Modes of Operation: Heat, Off, Cool, Auto

• Program Type: 7-Day Programmable, 5-1-1 Programmable, 5-2 Programmable, 1 Week

• Energy Star Certified: Yes

• Alerts and Reminders: Heat Pump Failure, Memory Error, Sensor Error, Filter Change

• Heat-Cool Changeover: Auto or Manual

• Power Supply: Hardwired

• Power Source: Hardwired

• Frequency: 60 Hz

• Wi-Fi: Yes

• Color: White

• Ambient Operating Temperature (Max): 120 °F, 49 °C

• Ambient Operating Temperature (Min): 32 °F, 0 °C

• Differential Temperature: ± 1 °F, ± 0.5 °C

• Operating Relative Humidity (Max): 90% RH, non-condensing

• Operating Relative Humidity (Min): 5% RH, non-condensing

• Temperature Accuracy: 1 °F, 0.5 °C

• Electrical Connection Type: UWP Mounting System

• Set point Temperature (Max): Heat: 90 °F, Cool: 99 °F, Heat: 32 °C, Cool: 37 °C

• Set point Temperature (Min): Heat: 32 °F, Cool: 50 °F, Heat: 0 °C, Cool: 10 °C

• Switch Type: Relay

• Product Height: 3.44 in, 87 mm

• Product Width: 5.13 in, 130 mm

• Product Depth: 1.188 in , 29.5 mm

• Features: ENERGY STAR Certified, Backlit Display , Filter Change Reminder

INCLUDES

• Thermostat

• UWP mounting plate

• Decorative cover plate with J-box adaptor

• Mounting hardware

• Literature

Specifications

Specification
Stages (Conventional)	1 Heat, 1 Cool
Stages (Heat Pump)	1 Heat, 1 Cool
Power Method	Hardwire (24Vac)
Display Size	4.8 sq. in.
WiFi Capability	Yes
Temporary Hold	Yes
Permanent Hold	Yes
Millivolt Compatible	No
Touchscreen	No
Battery Backup	No
Filter Indicator	Yes
Humidification Controls	No
Key Pad Lockout	Yes
Remote Sensing Capability	No

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	2
Exterior Dimensions (D) (inches)	7.000000
Exterior Dimensions (W) (inches)	5.000000
Exterior Dimensions (H) (inches)	3.000000
Shipping Weight (lbs)	2.000000
