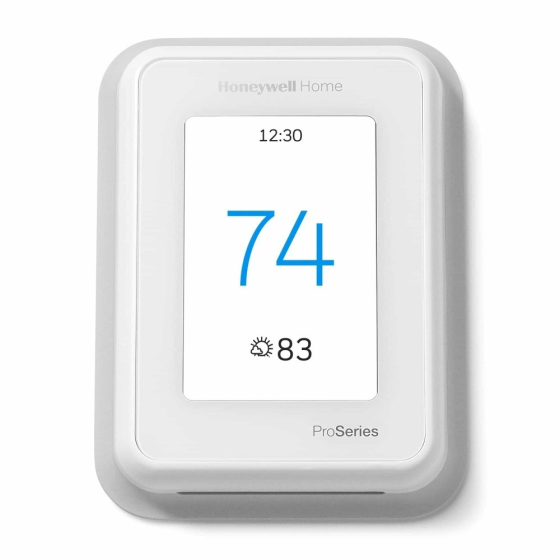

Honeywell T10+ Pro Smart Thermostat with RedLINK & Wi-Fi, 2H/2C (3H/2C HP), 24Vac (with Sensor)

FEATURES

The T10+ Pro Smart Thermostat utilizes both RedLINK® and Wi-Fi capabilities. It allows homeowners to prioritize spaces in their house where they want to direct their comfort. Up to 4H/2C Heat Pump or 3H/2C Conventional (with EIM), Geofencing and flexible programmability available. Utilizes the Resideo App. ENERGY STAR® Certified.

SPECIFICATIONS

• Application: 24 Vac systems, up to 3H/2C heat pump or 2H/2C conventional. Gas, Oil, Electric, Steam / Gravity Systems & dual fuel
• Dimensions (in.): 4.9" H x 3.7" W x 0.93" D
• Dimensions (mm): 125.4mm x 94.1mm x 23.68mm
• Includes: Thermostat, UWP mounting system, cover plate, mounting hardware, & wireless indoor sensor
• Mounting: UWP Mounting System
• Electrical Ratings: 20 to 30 Vac
• Frequency: 50 Hz; 60 Hz
• Stages: Up to 3 Heat/2 Cool Heat Pumps; Up to 2 Heat/2 Cool Conventional Systems
• Electrical Connections: UWP Mounting System
• Operating Humidity Range (% RH): 5 to 90% RH, non-condensing
• Supply Voltage: 20 to 30 Vac
• Switch Positions (System): HEAT-OFF-COOL-AUTO-EM HEAT
• Switch Positions (Fan): AUTO-ON-CIRC-FOLLOW SCHEDULE
• Operating Temperature Range (F): 37 F to 102 F
• Operating Temperature Range (C): 2.7 C to 39 C
• Shipping and Storage Temperature Range (F): - 20 F to 120 F
• Shipping and Storage Temperature Range (C): - 28.9 C to 48.9 C
• Approvals, Federal Communications Commission: FCC: 47 CFR § 15.19 (a)(3), 47 CFR § 15.21 (USA only), & 47 CFR § 15.105 (b). IC REGULATIONS: RSS-GEN
• Network Communications: Wi-Fi
• Power Method: Hardwired
• Ambient Temperature Range (C): 0 C to 50 C
• Ambient Temperature Range (F): 32 F to 120 F
• Color: White
• Display: Touch screen
• Sensor Element: Relay
• Programmability: 7 day, 5-1-1 day, 5-2 day, 1 week, or Non-programmable. Can use sensors for priority scheduling.
• Terminal Designations: RC, R, C, W, O/B, Y, Y2, G, E, AUX, K, L, U, U, S, S
• Display Size: 7.27 sq. in.
• Temperature Control Mode Selections: Ambient Air Temperature
• Changeover: Auto or Manual
• Setting Temperature Range (F): Heat: 40 F to 90 F; Cool 50 F to 99F
• Setting Temperature Range (C): Heat: 4.5 C to 32.0 C; Cool: 10 C to 37.0 C
• Humidification Setting Range: 0% to 90% RH
• Dehumidification Setting Range: 10% to 100% RH
• Cool Current: 0.02 A to 1.0 A running
• Heat Current: 0.02-1.0 A
• Fan Current: 0.02-.05 A
• External Sensors Available: C7189R3002 wireless RedLINK Indoor temperature, humidity, and motion, C7089R3013 wireless outdoor temperature & humidity sensor, C7189U1005 wired indoor sensor, C7089U1006 wired outdoor sensor, AC112-01 floor slab sensors ordered separate
• Parts Needed for Operation (not included): THM04R3000 EIM available separate or in the YTHM1004R kits
• Transmitter Range: For RedLINK Transmitter - Max distance for open air line-of-site is about 1500 feet. This may be reduced depending on materials in-between the radios. It is up to 200 ft in a typical home.
• Transmitter Frequency: RedLINK Transmitter - 900 MHz frequency range
