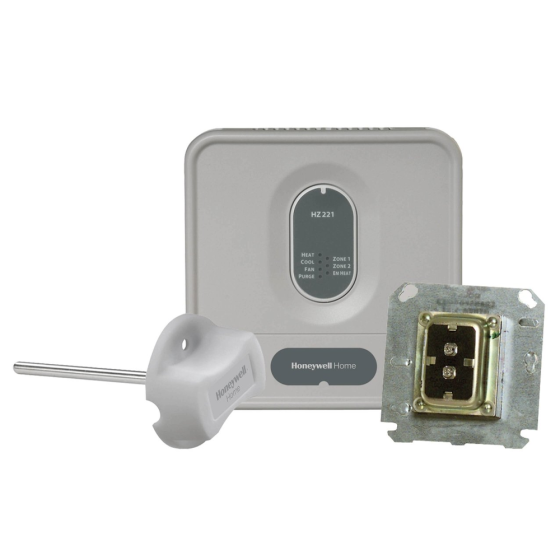

Honeywell TrueZONE® HZ221K 2-Zone Panel Kit (2H/1C Heat Pump)

Item
HZ221K
  • California Prop 65

FEATURES

This TrueZONE® HZ221 Panel is for use with single stage heat pumps with auxiliary heat applications, up to two zones. Operating at a maximum voltage of 24 volts, it comes with auto changeover and a resettable fuse.

• Robust Push Terminals
• Common-Sense LEDs
• Clean, Professional Installation
• Smaller Footprint
• Variable-Speed Fan Control

SPECIFICATIONS

• Display Type: Not Applicable
• LED Functions: Heat, Cool, Fan, Purge, Zone 1, Zone 2, Emergency Heat
• Emergency Heat Switch: Yes
• Heat Pump Compatible: Yes
• Stages: 1 stage heat pump with auxiliary heat
• Product Height: 8 in
• Product Length: 8 in
• Product Width: 1.86 in
• Warranty: 5 Years
• Individual Zone Fan Control: Yes

INCLUDES

• HZ221 Zone Panel
• Sensor
• Transformer
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 3.75
Exterior Dimensions (D) (inches) 9.600000
Exterior Dimensions (W) (inches) 8.900000
Exterior Dimensions (H) (inches) 7.600000
Shipping Weight (lbs) 3.750000
