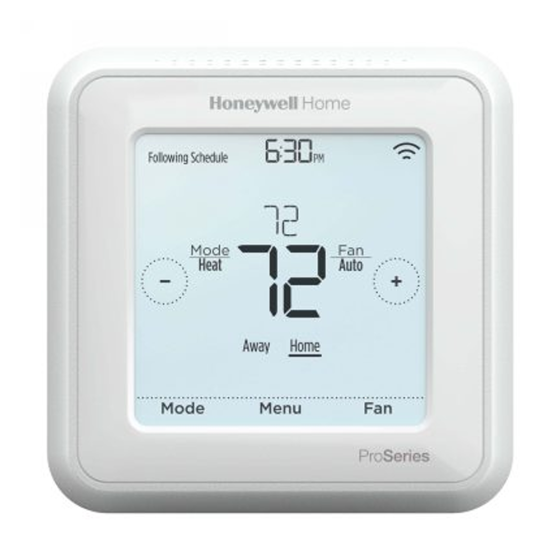

T6 Pro Programmable Thermostat designed to work with any Z-Wave compliant controller or gateway; however, a security enabled Z-Wave Plus Controller is recommended to fully utilize all thermostat features. Works with Heat Pump or Conventional systems and has dual fuel and aux heat lockout with outdoor sensor.
• Up to 3H/2C Heat Pump systems or up to 2H/2C Conventional systems
• Z-Wave Plus certified with improvement in range, battery life, and bandwidth
• Backwards compatibility
• Selectable ranges stops
• Keypad lockout
• DST Enabled
• Time based 7-day, 5-1-1 or 5-2 day programmable, non-programmable, or occupancy controlled with Z-wave panel/app integration
• 5 Year Warranty
Applications
Z-wave systems. 24 Vac systems; Gas, Oil, Electric Warm Air; Hot water Coil; Gas, Oil, Electric Hydronic; or Steam / Gravity Systems
SPECIFICATIONS
• Dimensions (in.): 4-1/16 in. long x 4-1/16 in. wide x 1-3/32 in. deep
• Dimensions (mm): 103.6 mm long x 103.6 mm wide x 28 mm deep
• Mounting: UWP Mounting System
• Electrical Ratings: 20 to 30 Vac
• Frequency: 50 Hz; 60 Hz
• Stages: Up to 3 Heat/2 Cool Heat Pumps + Dual fuel; Up to 2 Heat/2 Cool Conventional Systems
• Electrical Connections: UWP Mounting System
• Operating Humidity Range (% RH): 5 to 90% RH, non-condensing
