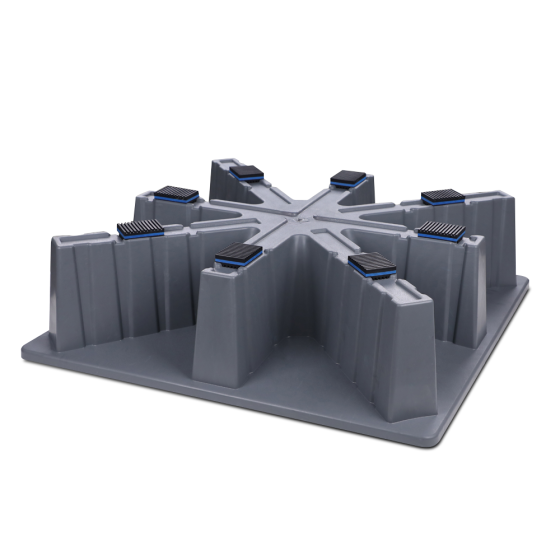

The DiversiTech® HP3636-8 Heat Pump Pad provides an effective base for heat pump equipment installed in snowy climates. Rather than a combination of a typical 2 inch (or 3 inch) equipment pad and 6 inch heat pump risers, the Heat Pump Pad provides a full 8 inch of elevation in a simple square footprint. The star pattern of the integral risers allows for installation of equipment with different size footprints up to 36 inch X 36 inch.
FEATURES & BENEFITS
• Include 8 anti-vibration pads uniquely designed to fit into the guide slots on the top of the risers. • The base is sloped outward to allow for easy drainage of condensate or defrost cycle condensate when the outdoor coil is operating in heat pump mode. • Nestable for efficient shipping, transportation, and warehousing. • Environmentally friendly • Injection molded • Made from recycled polypropylene material • Drillable • UV Resistant • Load Capacity: 389 lbs
