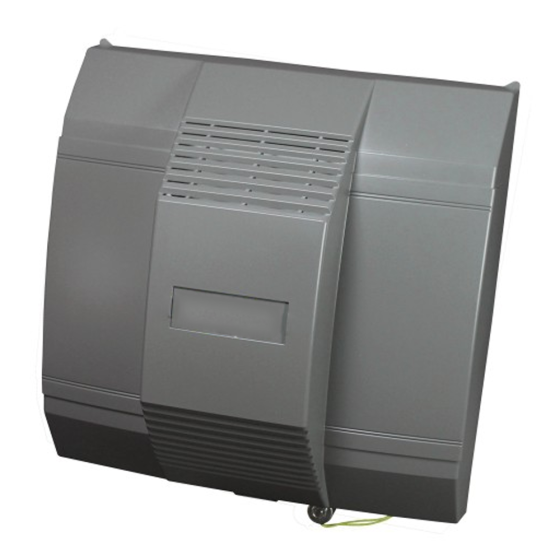

Carrier® Large Fan Powered Humidifier 18GPD

FEATURES

Controlling indoor humidity is very important. In many cases the air inside a home is drier than a desert. Dry, indoor air is often the culprit for such common problems as itchy or cracked skin, eye irritation, dry nasal passages, and damaged home furnishings. Dry indoor air can also increase the possibility of catching cold and flu viruses and can reduce the efficiency and effectiveness of the heating system.

Easy Access for Cleaning and Maintenance
The treated aluminum water panel ensures top performance. Front or side access door allows for quick and convenient removal and replacement of water panel.

Smooth, Low- Noise Operation
Nearly silent operation is the result of Carrier humidifier’s precision- engineered fan and motor combination. Air is drawn through the water panel quietly and efficiently, turning water into the water vapor that humidifies the home.

Long Lasting, Attractive Cover
The outside casing and interior components of all Carrier humidifiers are made from durable UV resistant plastic. This plastic resists deterioration, even when exposed to ultra- violet light sources common in many systems.

Optimum Distribution of Moisture
Through the combination of the solenoid valve and water distribution system by Carrier, homeowners will benefit from the most optimum distribution of moisture possible.

Four Humidity Control Options
Choose between four separate control options, the Humidistat, the HumidiTrac™, the Thermidistat™, and the Infinity system Control. Each of these units provide precise control over the humidity levels in the home.

Granite Gray
Color- compatible with most HVAC equipment.

SPECIFICATIONS

• Output Gallons (Liters)/Day: 18 (68)
• Airflow: Fan
• Water Flow: Drain Through
• Water Panel Replacement: P110- 3545
• Water Panel in (mm) (H x W x D): 13 x 10 x 1- 11/16 (330 x 254 x43)
• Water Panel Access: Quick Release Cover
• Unit Size in (mm) (H x W x D): 18 x 16 x 10- 1/4 (457 x 406 x 260)
• Weight lbs (kg): 17.1 (7.8)
• Water Usage Gal (liters)/hr): 6 (23)

ELECTRICAL CONTROL LOW- VOLTAGE SOLENOID
• Volts: 24V- 60Hz
• Amps (Max): 0.5
• VA (Max): 12
• Watts: 2.3

HIGH VOLTAGE CORD
• Volts: 120V- 1ph- 60Hz N/A
• Amps: 0.7

CONNECTIONS
• Water Inlet: 1/4- in. Copper Tubing
• Water Drain: 1/2- in. I.D. plastic hose 7/8- in. Tube
• Duct Opening in (mm) (W x H): 14- 13/16 x 14- 1/4 (376 x 362)

STANDARD EQUIPMENT
• Water Valve: Solenoid, 24VAC
• Motor: Thermal Protected 120VAC (0.014HP = 1/70 HP)
• Relay: SPST 24VAC
• Humidistat: 24V
• Saddle Valve: Standard
• Template: Installation Sheet Included
