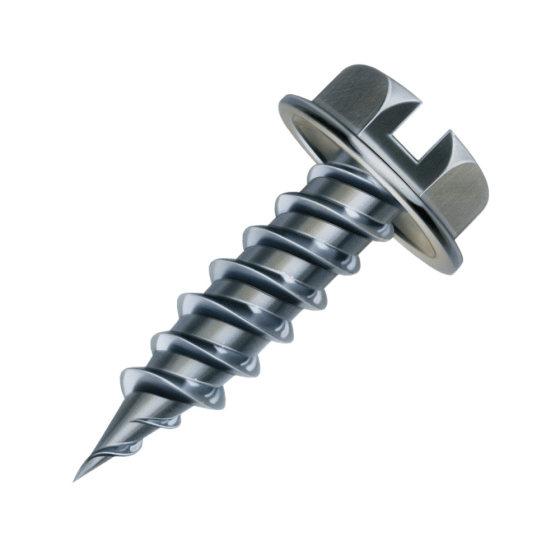

Malco® Zip-in® Zinc Plated Sheet Metal Screws with Taper Point, 1/4 in. Slotted Hex Head, 3/4 in. L (10,000 pk)

Item
HW8X3/4Z
  • California Prop 65

APPLICATIONS

Malco’s Zip-in® Screws are known for their superior quality and is considered by many for being the best screw choice for HVAC metal duct fastening.

A unique thread design and quality-controlled manufacture spell the Zip-in® sheet metal screw difference. Zip-in’s® are made with a sophisticated heat treat process which allows the screw to taper to a fine, sharp point without sacrificing critical point strength. A single starting thread is formed down to the very tip of the point and is the source of Zip-in’s® penetrating power. A second thread above the point engages after initial penetration and drills in the screw double fast. Malco’s Zip-in® screws are faster driving, with a greater capacity for fastening heavier gauges of sheet metal than any other self-piercing type.

FEATURES & BENEFITS

• Undercut-indented hex washer slotted head
• Bright Zinc Plated
• Burr Free
• Full 1/4″ (no. 8) head will not strip out of hex driver opening
• One 1/4″ hex driver accommodates all sizes
• Undercut – always seats flush
• ® Trademarked & Patented Head Markings indicate one and only genuine Zip-ins. U.S. Patent No. D524,638
• Combination Lead Double Thread Design
• Single starting thread machined down to very tip of screw point.
• Instantly penetrates and engages in heavy gauge sheet metal and layered light gauge.
• Quality controlled heat treat
• Sharp tapered point will not mushroom or break
• No walking
• Head Type: Slotted Hex
• Driver Type: 1/4"
• Screw Length: 3/4"

Specification
Length 3/4 in.
Head Slotted Hex
Head Size 1/4"
Point Tapered Point
Thread Size #8
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 38.04
Exterior Dimensions (D) (inches) 10.000000
Exterior Dimensions (W) (inches) 10.000000
Exterior Dimensions (H) (inches) 6.500000
Shipping Weight (lbs) 39.000000
