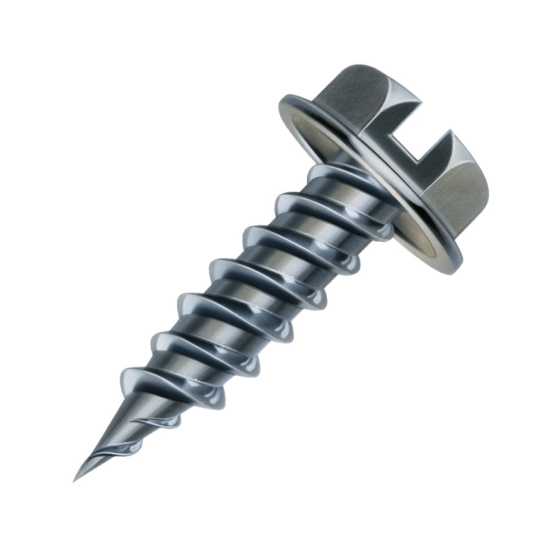

Malco® Zip-in® Zinc Plated Sheet Metal Screws with Taper Point, 1/4 in. Slotted Hex Head, 3/4 in. L (1,000 pk)
APPLICATIONS
Malco’s Zip-in® Screws are known for their superior quality and is considered by many for being the best screw choice for HVAC metal duct fastening.
A unique thread design and quality-controlled manufacture spell the Zip-in® sheet metal screw difference. Zip-in’s® are made with a sophisticated heat treat process which allows the screw to taper to a fine, sharp point without sacrificing critical point strength. A single starting thread is formed down to the very tip of the point and is the source of Zip-in’s® penetrating power. A second thread above the point engages after initial penetration and drills in the screw double fast. Malco’s Zip-in® screws are faster driving, with a greater capacity for fastening heavier gauges of sheet metal than any other self-piercing type.
FEATURES & BENEFITS
• Undercut-indented hex washer slotted head
• Bright Zinc Plated
• Burr Free
• Full 1/4″ (no. 8) head will not strip out of hex driver opening
• One 1/4″ hex driver accommodates all sizes
• Undercut – always seats flush
• ® Trademarked & Patented Head Markings indicate one and only genuine Zip-ins. U.S. Patent No. D524,638
• Combination Lead Double Thread Design
• Single starting thread machined down to very tip of screw point.
• Instantly penetrates and engages in heavy gauge sheet metal and layered light gauge.
• Quality controlled heat treat
• Sharp tapered point will not mushroom or break
• No walking
• Head Type: Slotted Hex
• Driver Type: 1/4"
• Screw Length: 3/4"
Specification | |
---|---|
Length | 3/4 in. | Head | Slotted Hex | Head Size | 1/4" | Point | Tapered Point | Thread Size | #8 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 3.9 | Exterior Dimensions (D) (inches) | 4.500000 | Exterior Dimensions (W) (inches) | 4.500000 | Exterior Dimensions (H) (inches) | 5.250000 | Shipping Weight (lbs) | 4.000000 |
