HyperSense

FEATURES

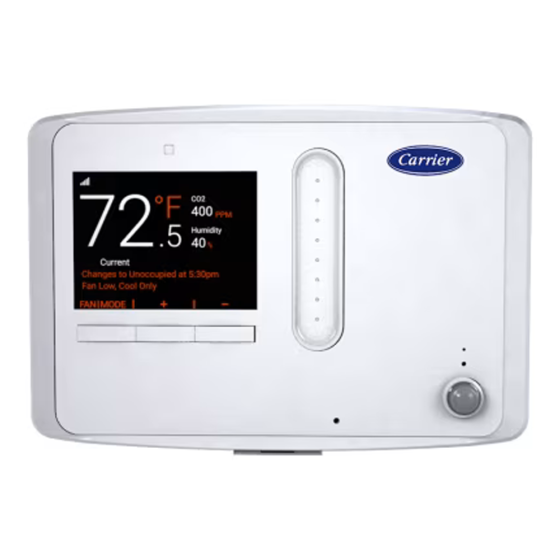

The HyperSense caters to use cases where a highly capable remote interface is desired for a ClimaVision Smart Node controlling a VVT or VAV terminal unit. HyperSense is part of ClimaVision’s vertically integrated suite of intelligent building solutions delivering multi- mode sensing, remote monitoring, and individual zone control for the comfort and productivity of building occupants. The HyperSense works out of the box with the Smart Node.

The HyperSense brings building owners up to eight onboard sensors for indoor air quality management (IAQM) bundled into one device. Paired with the Smart Node, the HyperSense’s industry-leading sensing turns into granular and sophisticated zone control. The HyperSense delivers various parameter values in a room or zone to the Smart Node, which then carries out advanced control algorithms based on real-time data from the space.

• Provides a large screen with a touch slider and mechanical keys to change values on the Smart Node
• Measures indoor air quality and conveys the information to a Smart Node
• 4 wire interface for RS 485 communication from the Smart Node to the HyperSense
• Sensor bus for power and communication with the Smart Node
• Option to connect a particulate matter sensor (configurable to PM2.5 or PM10) (7C-SE-K1X-X)

SPECIFICATIONS

MECHANICAL
• Dimensions: 6.5” x 4.5” x 1.15” (165mm x 115mm x 29 mm)
• Mounting: (2) screws in drywall
• Screen: 2.8” 240x320 pixel TFT LCD
• Operating Range: 32°F to 122°F (0°C to 50°C)

SENSORS
• Temperature: Operating range between 32°F to 122°F (0°C to 50°C); typical accuracy of +/- 1°F or 0.2°C
• Humidity: Operating range between 20 to 85% noncondensing; Typical accuracy of +/- 2% RH
• Dedicated CO2 Sensor: Range 0-40’000 ppm; Accuracy +/-30ppm over range of 400- 10,000ppm and lifetime of 15 years
• Light: Ambient light sensor; high-accuracy UV index sensor; matches erythemal curve; < 100 mix resolution
• Sound: 40-120dB response for 100 Hz to 10Khz
• Occupancy: Passive Infra Red (PIR) with detection range of 4m with 30-degree angle
• VOC: TVOC: 0-60’000 ppb. Typical Accuracy - 15% of measured value

ELECTRICAL
• Power: 6.5V DC (+/-15%) with a maximum power consumption of 2.5W

COMMUNICATIONS
• Wired: (1) 4 wire RS-485 interface used to power and communicate with the Smart Node

I/O
• Inputs:
(2) 10K Type-2 thermistor inputs with 2% accuracy
(2) 0-10V analog voltage inputs with 2% detection accuracy

• Outputs:
(1) One-wire interface
(1) TFT Screen

INCLUDES

• (1) HyperSense
• (1) Mounting Adapter plate
• (2) Mounting Screws
