HyperStat Split (includes HyperLite and HyperConnect)

FEATURES

The HyperStat Split empowers contractors to upgrade rooftop units with Advanced Rooftop Control with unprecedented ease, bringing energy efficiency to more buildings than ever before. Using only two existing wires from the RTU to the thermostat, the HyperStat Split provides dual enthalpy economizer, demand-control ventilation, and VFD control. An onboard PIR occupancy sensor enhances energy savings with auto away, and its hefty I/O package enables alerts like condensate overflow and dirty filters.

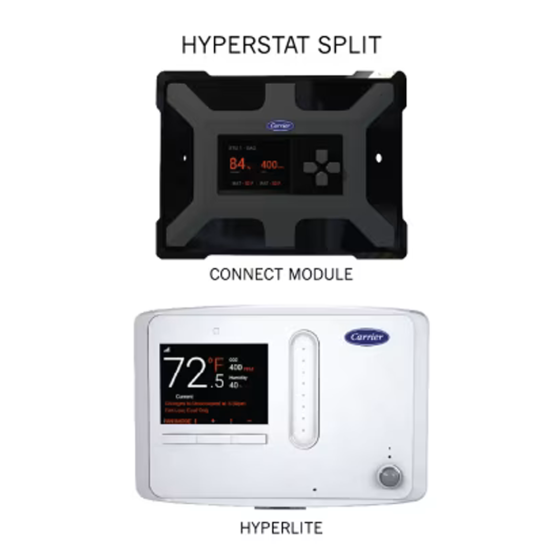

The HyperStat Split is a two-piece solution for single-zone equipment control. It consists of a HyperLite IAQ zone sensor and a Connect Module, the advanced equipment controller. As both an occupant interface and a powerful indoor air quality sensing station, the HyperLite takes user input and collects data on temperature, humidity, light, sound, CO2, occupancy, and particulate matter. The Connect Module communicates with the HyperLite over two wires from the RTU or FCU and performs staged or modular control. With the ability to accept eight universal analog inputs, the Connect Module moves load control away from the zone and into the equipment empowering a more capable retrofit solution.

• Dual enthalpy economizer, demand-control ventilation, and VFD control for full Advanced Rooftop Controls over two wires
• Support for condensate overflow and dirty filter sensors with notifications for advanced alerts
• Real-time access to sensor data and remote control over building parameters through Carrier ClimaVision’s building intelligence suite of web and mobile apps
• Secure and proprietary encrypted 900 MHz wireless mesh network allows for lightweight, reliable communications between devices, eliminating the need to run wires throughout a facility
• Over-the-air firmware updates
• Power and communication carried over two wires
• In a retrofit application, any two existing thermostat wires can be used
• Plug-and-Play solution for Advanced Rooftop Control
• Unitary equipment with up to three stages of cooling/heating/fan or fully modulating plus economizer control:
Rooftop Units
Fan Coil Units
Unit Heaters

SPECIFICATIONS

ClimaVision HyperLite

MECHANICAL
• Dimensions: 6.5” x 4.5” x 1.15” (165mm x 115mm x 29mm)
• Operating Range: -4 – 122˚F (-20 to 50˚C)
• Screen: 2.8” TFT
• Mounting: (2) screws in drywall

SENSORS
• Temperature: Operating range between 32°F to 122°F (0°C to 50°C); typical accuracy of +/- 1°F or 0.2°C
• Humidity: Operating range between 20 to 85% noncondensing; Typical accuracy of +/- 2% RH
• Dedicated CO2 Sensor: Range 0-40’000 ppm; Accuracy +/-30ppm over range of 400- 10,000ppm and lifetime of 15 years
• Light: Ambient light sensor; high-accuracy UV index sensor; matches erythemal curve; < 100 mix resolution
• Sound: 40-120dB response for 100 Hz to 10Khz
• Occupancy: Passive Infra Red (PIR) with detection range of 4m with 30-degree angle

ELECTRICAL
• Power: Power over RS485 two-wire protocol.
• COMMUNICATIONS
• Bluetooth: Used during commissioning to pair with the CCU
• Mesh: 900 MHz IEEE 802.15.4- compliant; used for device communication on mesh network
• Wired: (1) 2-wire Power RS485 used to communicate with Connect Module

I/O
• Inputs: None
• Outputs: (1) POR RS485 Interface, (1) TFT Screen

ClimaVision Connect Module

MECHANICAL
• Dimensions: 5.5” x 4.13” x 1.22” (140 mm x 105 mm x 31mm)
• Mounting: Wall
• Screen: TFT LCD, 1.77", 128(RGB)* 160 Pixels

COMMUNICATIONS
• Bluetooth: Bluetooth – Available for future use.
• Wired: (1) 2-wire Power RS485 used to communicate with Connect Module

Modbus RTU / BACnet over RS485 communication
Sensor bus
Power over RS485 to enable communication with the HyperLite and power the unit over standard thermostat wires.
Dedicated Modbus/BACnet MSTP ports to interface with 3rd party BMS devices.

I/O
• Inputs:
A. (8) Universal inputs.
B. (1) Sensor Bus

• Outputs:
C. (4) 0-10V dc or 4-20mA analog outputs
D. (8) relays rated at 1A, 120V ac or 24 V ac/dc resistive load

ELECTRICAL
• Power: 24V AC/DC (+/-15%) with nominal power consumption 1.0W and maximum consumption of 2.5W

INCLUDES

• (1) Each of HyperLite and Connect Module
• (1) Mounting Adapter plate
• (2) Mounting Screws
