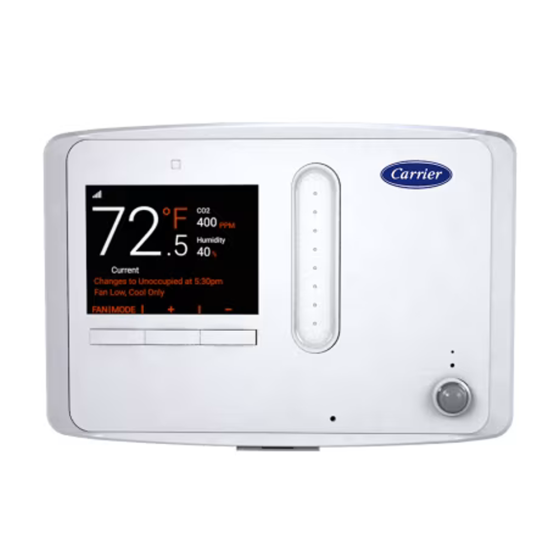

HyperStat

FEATURES

Give your occupants the power of IAQ management and localized temperature control with the ClimaVision HyperStat, an all-in-one thermostat and humidistat thoughtfully crafted to support healthy, comfortable spaces. Each stat has up to eight on-board sensors for a complete picture of IAQ in your zone and has control capabilities for up to three-stage equipment to fine-tune sequences for optimal building health.

The HyperStat works out of the box with the ClimaVision intelligent building solution. Replacing non-connected thermostats with the HyperStat’s cloud-enabled capabilities is as easy as swapping out the wires. The sleek, contemporary design will look right at home in any space.

The HyperStat is an all-in-one IAQ sensing station, thermostat and humidistat. It brings HVAC equipment online for secure remote management from any smartphone or connected device. Occupants can make temperature adjustments within predefined limits from a touch slider or buttons. The TFT Display provides valuable insights to users or technicians.

This device supports the WELL Building standard for healthy buildings and tracks occupancy, temperature, dedicated CO2, humidity, light, sound, and optional VOC and particulate matter measurements every 60 seconds.

• Built-in sequences for occupancy detection mean your HyperStat prioritizes health and comfort when it matters most and saves valuable energy when spaces are empty.
• Pre-loaded equipment profiles allow for interfacing to a wide variety of staged and fully modulating equipment.
• Facility directors have real-time access to sensor data and remote control over building parameters through the HyperStat’s integration with ClimaVision’s building intelligence suite of web and mobile apps.
• ClimaVision’s secure encrypted 900Mhz mesh network allows for lightweight, reliable communications between devices and the ClimaVision Central Control Unit, eliminating the need for running wires throughout a facility.
• Over-the-air firmware updates
• Sensor bus for power and communication
• Commissions and communicates with the CCU in just minutes with Bluetooth pairing
• Supports staging of cooling, heating, or fan (up to 3 stages) or fully modulating:
Rooftop Units
Water Source Heat Pumps
Unit Heaters
PTAC Units
2-Pipe Fan Coil Units
Induction Units

SPECIFICATIONS

MECHANICAL
• Dimensions: 6.5” x 4.5” x 1.15” (165mm x 115mm x 29 mm)
• Mounting: (2) screws in drywall
• Screen: 2.8” 240x320 pixel TFT LCD
• Operating Range: 32°F to 122°F (0°C to 50°C)

SENSORS
• Temperature: Operating range between 32°F to 122°F (0°C to 50°C); typical accuracy of +/- 1°F or 0.2°C
• Humidity: Operating range between 20 to 85% noncondensing; Typical accuracy of +/- 2% RH
• Dedicated CO2 Sensor: Range 0-40’000 ppm; Accuracy +/-30ppm over range of 400- 10,000ppm and lifetime of 15 years
• Light: Ambient light sensor; high-accuracy UV index sensor; matches erythemal curve; < 100 mix resolution
• Sound: 40-120dB response for 100 Hz to 10Khz
• Occupancy: Passive Infra Red (PIR) with detection range of 4m with 30-degree angle
• VOC: TVOC: 0-60’000 ppb. Typical Accuracy - 15% of measured value

ELECTRICAL
• Power: 24V AC/DC (+/-15%) with nominal power consumption 1.0W and maximum consumption of 2.5W

COMMUNICATIONS
• Bluetooth: BLE4.1; used during commissioning
• Mesh: 900 MHz IEEE 802.15.4-compliant; used for device communication on mesh network
• Wired:
4 wire RS-485 interface
3 wire connector for low-power sensor bus

INCLUDES

• (1) HyperStat
• (2) Mounting screws
