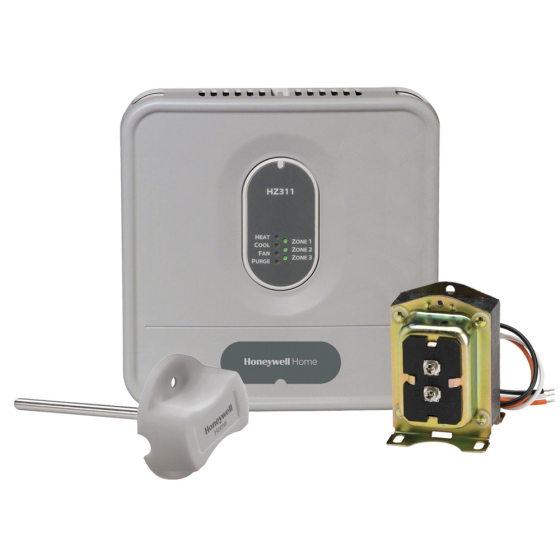

Honeywell TrueZONE® HZ311K 3-Zone Panel Kit (1H/1C Conventional)

FEATURES

This TrueZONE® HZ311 Panel is for use with conventional, single stage applications, up to 3 zones. It is compatible with the Discharge Air Temperature Sensor and operates at a maximum voltage of 24 volts. This panel also comes with auto changeover and a resettable fuse.

• Robust Push Terminals
• Common-Sense LEDs
• Clean, Professional Installation
• Smaller Footprint
• Variable-Speed Fan Control

SPECIFICATIONS

• Auto Changeover: Yes
• Compatible Sensor: Discharge Air Temperature Sensor
• LED Functions: Heat, Cool, Fan, Purge, Zone 1, 2, 3, 4
• Stages: 1 Heat/1 Cool
• Product Height: 8 in
• Product Length: 8 in
• Product Width: 1.86 in
• Warranty: 5 Years
