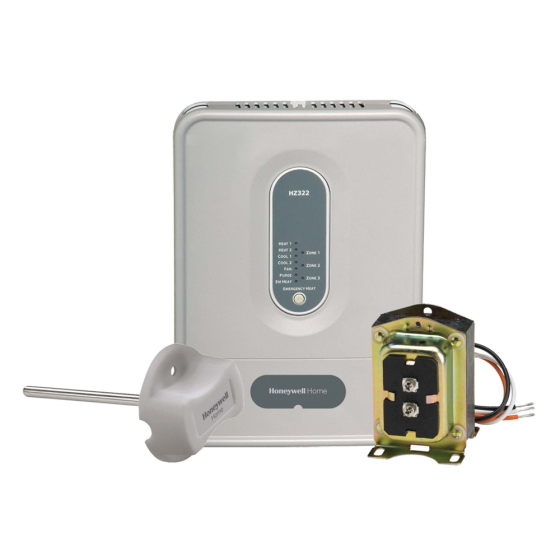

Honeywell TrueZONE® HZ322 3-Zone Panel Kit (2H/2C Conventional & Heat Pump)

FEATURES

This TrueZONE® HZ322 Panel is for use with conventional and heat pump applications. It can be used with up to 3 zones. Complete with Intuitive Installer setup, the easy-to-follow, digital display uses real language to guide users through four easy steps.

• Standard Checkout Procedure
• Robust Push Terminals
• Common-Sense LEDs
• Clean, Professional Installation
• Smaller Footprint
• Variable-Speed Fan Control
• Discharge Air Temperature Staging
• RedLINK™ enabled for wireless operation when used with THM4000R1000 wireless adapter
• Controls up to 2 Heat/2 Cool conventional or 2 Heat/1 Cool heat pump

SPECIFICATIONS

• Auto Changeover: Yes
• Compatible Sensor: Discharge Air Temperature Sensor
• Display Type: Not Applicable
• LED Functions: Stage of heat and damper state
• Stages: 2 Heat/2 Cool
• Product Height: 11.5 in
• Product Length: 8 in
• Product Width: 1.86 in
• Warranty: 5 Years
