Honeywell TrueZONE® HZ432 4-Zone Panel Kit (3H/2C Conventional & Heat Pump - Dual Fuel)

FEATURES

This TrueZONE® HZ432 Panel is for use in conventional, heat pump or dual fuel applications. With Intuitive Installer Setup, the easy-to-follow, digital display uses real language to guide users through four easy steps. It also comes with a Standard Checkout Procedure.

• Robust Push Terminals
• Variable-Speed Fan Control
• Discharge Air Temperature Staging
• Advanced Dual-Fuel Operation
• Easy-To-Use Checkout Mode
• RedLINK™ enabled for up to 4 wireless zones when used with THM4000R1000 Wireless Adapter and RedLINK FocusPRO, VisionPRO, or Prestige thermostats
• Controls up to 3 Heat/2 Cool conventional or heat pump
• Controls up to two stages compressor and two stages fossil fuel in dual fuel mode
• Mounts on wall, stud, or return duct

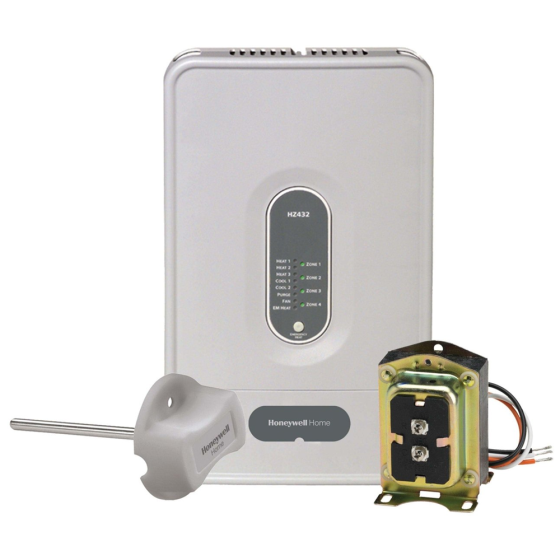

• Kits include HZ432 Zone Panel, Transformer and Discharge Air Sensor

SPECIFICATIONS

• Auto Changeover: Yes
• Compatible Sensor: Discharge Air Temperature Sensor, Outdoor Temperature Sensor
• Display Type: Not Applicable
• LED Functions: Stage of heat and damper state
• Stages: 3 Heat/2 Cool
• Product Height: 13.42 in
• Product Length: 8 in
• Product Width: 1.86 in
• Warranty: 5 Years
