i-Vu® Building Automation System i-Vu® 8.0 Express (750 Controllers Maximum) Pending Release

OVERVIEW

i-Vu 8.5 Connected Device

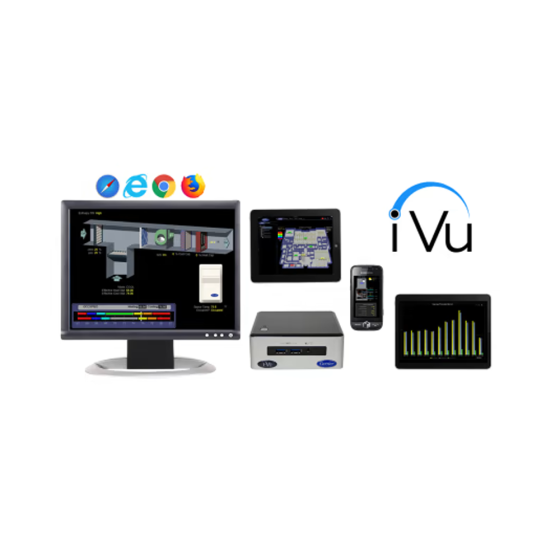

The i-Vu Express connected device is a plug-and-play building automation solution for small and medium-sized buildings. As a building automation server and i-Vu 8.5 software in one compact device, it automatically discovers the i-Vu control system in the building and provides operators with access to manage their Carrier HVAC system over the web.

Key Features and Benefits

Simple to install and commission; auto-discovers up to 750 connected i-Vu controllers and autogenerates HVAC equipment graphics

Built in scheduling, trending, and alarming tools help operators lower operating costs, improve occupant comfort, and resolve problems faster

Intuitive floorplans, dashboards, and reports provide actionable insights at a glance

Integrates third party equipment like lighting and meters for centralized management of building systems through a single i-Vu user interface

Receives automatic software updates over the internet; updates can then be executed and installed locally via the Management Tool within i-Vu Express

• Support for scalable vector graphic (SVG) floorplans
• BACnet Revision 19 compliance
• Operator information report provides facilities staff with visibility into who is using the i-Vu system and includes detailed information on operator configuration and security policy compliance
• Staged firmware downloads provide more efficient controller driver updates
• Autopilot add-on allows operators to create slideshows that cycle through i-Vu system graphics
• Message Queueing Telemetry Transport (MQTT) protocol support allows i-Vu system data to be published to an MQTT broker in the cloud for integration with Carrier’s Abound IoT platform
