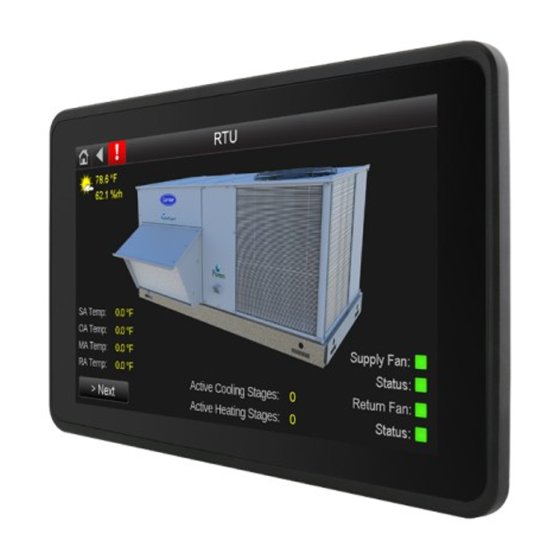

i-Vu Equipment Touch 5" Touch Display

FEATURES

Carrier’s TruVu Equipment Touch provide building operators and technicians with visibility and control over a single piece of HVAC equipment via the Rnet or BACnet port. The interface features an illuminated color, capacitive touchscreen display and is designed to connect to a single i-Vu controller, making management of the connected HVAC equipment both intuitive and simple.

• Draw occupants attention to important information with conditional alarming, color changes, and graphics
• Features a high resolution, capacitive multi-touch screen
• Support for 13 international languages and characters
• Can serve as a technician’s HVAC equipment interface
• Multi-level password protection for security
• Access virtually any point in the controller
• View and edit BACnet time schedules
• View all alarms in controller
• Change setpoints easily
• Rugged, industrial grade display and a wide temperature range and vibration resistance
• Fanless cooling system and ultra-low power consumption
• Wall-mounted
• Supports standard Equipment Touch files
• Support for graphics
• USB-C port for local device updates
• Supports screen capture to USB flash drive
• Built-in PDF viewer

SPECIFICATIONS

• Display: TruVu 5” IAQ Display
• Resolution: 800 x 480 pixels (Wide VGA)
• Touch: Capacitive Multi-Touch
• Viewing Angle: Ultra-wide (nearly 180 degrees)
• Max Colors: 24-bit
• Power: 24 Vac (±15%), 5 VA, 50 - 60 HZ, Class 2 external power supply, 12-24 Vdc
• Communication: Rnet
• Ports: EIA-485 based serial port for Rnet; USB-C host port for firmware upgrades
• Microcontroller: 32-bit
• Mounting: Wall or panel mounting within the building interior
• Environmental Range: -4 to 140°F (-20 to 60°C), 10–90% relative humidity, non-condensing

Temperature Sensor:
• Range: -4 to 140°F (-20 to 60°C)
• Accuracy over 30.0 to 100°F: ±1.0°F (±0.55°C)
• Accuracy over full range: ±2.0°F (±1.1°C)
• Resolution: 0.2°F (0.1°C)

Humidity Sensor:
• Range: 0 to 100% RH
• Accuracy over 20 to 80% RH: ±3.0% RH
• Accuracy over full range: ±5.0% RH
• Resolution: 0.05% RH

Memory:
• 32 MB Flash memory to store program code and screen file
• 16 MB RAM to store variable data and LCD data
• 8 kb Serial EEPROM to store non-volatile configuration data
• 1.6 MB maximum file size

• Device Identification: A serial number label beginning with EQA is on the back of the device
• Enclosure: ABS plastic with polycarbonate bezel
• Real Time Clock: 365/day real-time clock/calendar chip keeps track of time in the event of a power failure for a minimum of 3 days
• Compliance: UL-916 (PAZX), CE, FCC Part 15-Subpart B-Class A
