FEATURES & BENEFITS

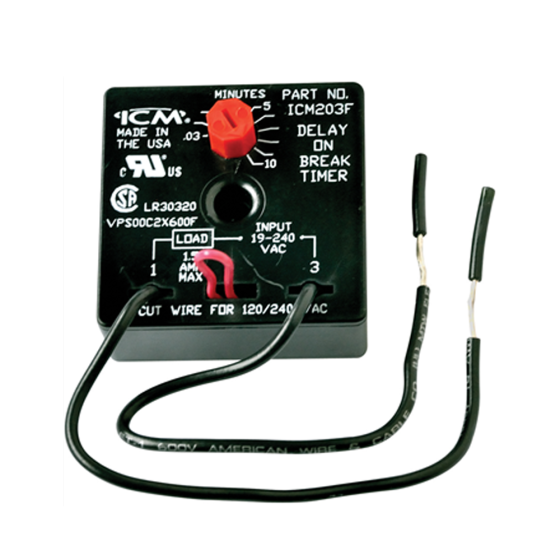

• Compressor lockout/anti-short cycle timer
• Helps to protect compressors from damage caused by rapid short cycling
• Simple, 2-wire hookup
• Adjustable timing
• Universal voltage
• 6-inch wire leads
• Input:- Voltage: 18-240 VAC- 1.5 amp- 15 amp inrush Knob-Adjustable Time Delay: .03-10 minutes (1.8-600 seconds)
REPLACES
• Supco - TD73W
• Wagner/DiversiTech - ADB-2
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.1 | Exterior Dimensions (D) (inches) | 2.000000 | Exterior Dimensions (W) (inches) | 2.000000 | Exterior Dimensions (H) (inches) | 1.250000 | Shipping Weight (lbs) | 0.200000 |
