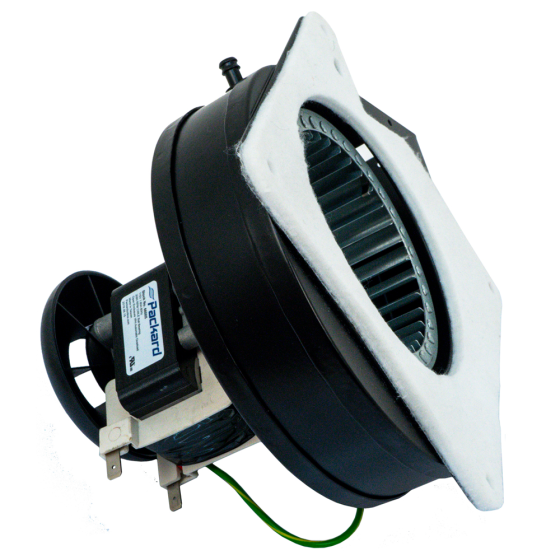

C-Frame Inducer Motor Kit 1/30HP, 3000RPM, 115VacVac, 1.6A

FEATURES & BENEFITS

• Ambient Temp.: 40°C
• Amps: 1.60
• Bearings: Ball
• Certifications: Ul, CSA
• Enclosure: Open
• H.P.: 1/30
• Hertz: 60
• Includes: Gasket
• Insulation Class: B
• Material: Metal
• Motor Type: Shaded Pole
• Mounting Option: Mounting Holes
• NEMA Frame: C-Frame
• Overall Length (In.): 8.69
• Overload Protection: Automatic
• Phase: Single
• RPM: 3000
• Speeds: 1
• Voltage: 115

REPLACES

• Fasco - 70022307
• Fasco - 70022771
• Fasco - 70023219
• Fasco - 7058-0229
• Emerson - 2569
• Emerson - 3106
• Emerson - F33JCS-3655
• AllTemp - FB-RFB859
• Goodman - 4MH09
• Goodman - 7002-2307
• Goodman - 7002-2771
• Goodman - 7002-3219
• Goodman - 7058-0229
• Goodman - B1859005
• Goodman - B1859005S
• Goodman - B40590-35
• Goodman - J238-11128
• Goodman - J238-112-11128
• Goodman - R7-RFB185
• Industry No. - 3105
• Mars - 10703
• Jakel - J238-11128
• Jakel - J238-112-11128
• Jakel - J238-112-11195
• Rotom - FB-RFB185
• Rotom - FB-RFB595
• Rotom - FB-RFB859
• Rotom - RFB185
• Rotom - RFB595
• Nidec - N157
• US Motors - N157
