DiversiTech® 2x2 Iso-Cube Anti-Vibration Pad 18" x 18" x 3/4", 180lbs. per Square
Item
ISO-18
APPLICATIONS

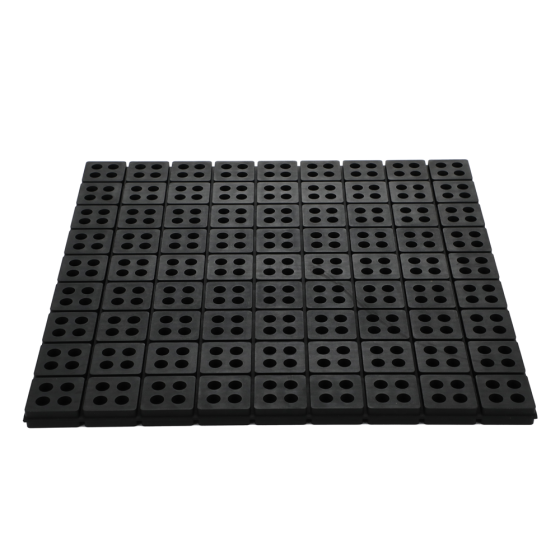

The DiversiTech® ISO-18 Iso-Cube is an 18x18x3/4 in. natural rubber anti-vibration pad designed to reduce vibration and noise emanating from refrigeration or air conditioning equipment. The circular design in each pad offers a suction cup effect, which eliminates the need to bolt the pads down. The 18 in. pad can be cut or torn into eighty-one 2x2 in. segments. These 50 durometer pads will withstand a load of 180 psi with greater resiliency.
FEATURES & BENEFITS
• Circular design in each pad offers a suction cup effect, which eliminates the need to bolt the pads down.
• Pads may be cut or torn to required size.
• Made from natural rubber
• 50 durometer pads
• Will withstand a load of 180 PSI
| Specification | |
|---|---|
| Thickness | 3/4 in. |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 7.75 | Exterior Dimensions (D) (inches) | 18.000000 | Exterior Dimensions (W) (inches) | 18.000000 | Exterior Dimensions (H) (inches) | 1.000000 | Shipping Weight (lbs) | 8.000000 |
