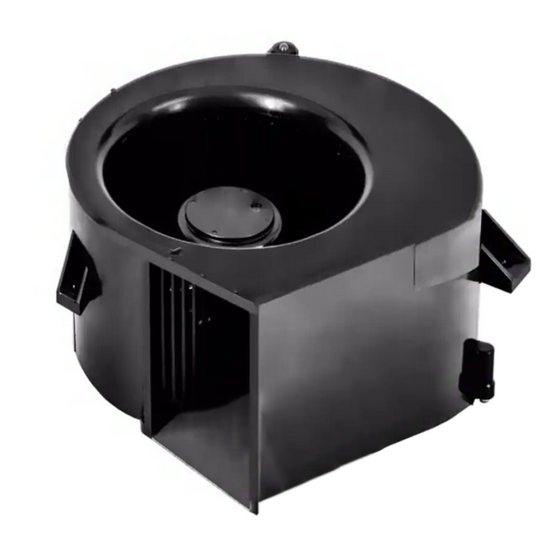

The Delta Breez ITG50-B ENERGY STAR® Certified Motor/Blade/Grille Assembly is used with the Delta Breez ITG-A Housing.
FEATURES & BENEFITS
• ENERGY STAR® Certified with DC Motor technology • Quiet operation at 0.7 Sones • ITG50 is UL listed for both ceiling and wall-mount installation • UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring. • Energy efficiency at 12.5 CFM/Watt • Airflow (CFM @ 0.1 SP): 50 • Sones: 0.7 • Power Consumption (Watts): 5.0 • Energy Efficiency (CFM/Watts): 12.5 • Current (Amps): 0.14 Max • Power Rating (Vac/Hz): 120/60
DC Blower Motor • Power rating of 120 volts/60Hz • DC brushless motor engineered to run continuously • Motor equipped with thermal cutoff fuse • Removable with permanently lubricated plug- in motor • Built-in soft start function to increase bearings’ life • Automatically powers off when impeller is locked abnormally
Grille • Attractive design using ABS material • Attaches directly to housing with torsion springs
