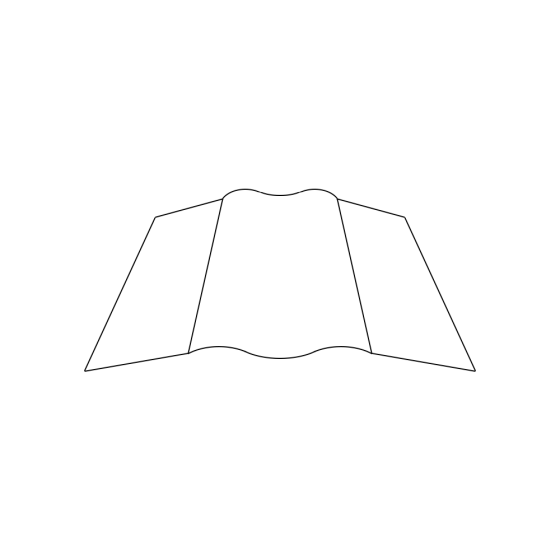

Junior Flexible Vinyl Duct Connector 1-3/4" x 3" x 1-3/4" x 100' (Excelon® - Black)

Item
JBX100
  • California Prop 65

APPLICATIONS

All air duct installations for heating, cooling or ventilation are attached to mechanical equipment containing a fan or blower. Vibrations, noises, and rattles resulting from operation of the fan or blower are transmitted into the metal ducts which carry the noises throughout the system. To isolate the vibration and noises to the source, an airtight flexible joint, consisting of a fabric which is attached to sheet metal on both sides, must be inserted between the equipment and the ductwork. This vibration isolator is called a "Flexible Duct Connector."

FEATURES & BENEFITS

• Excellent water resistance
• Excellent tear strength
• Excellent all-purpose fabric
• Unaffected by mildew
• Continuous Temp. Range: -40°F. to 180°F
• Color: Black
• Weight Per Square Yard: 20 oz.
• Abrasion Resistance: 15,000 cycles (Abrasion resistance as per Federal Test Standard 191 Method #5306 using CS 17 wheel with 250 Gram load.)
• Leakage Resistance: 350 (Leakage resistance as per Federal Test Standard 191 Method #5512. Results in P.S.I. (To convert inches of water multiply P.S.I. x 27.176.)
• Tear Strength: 100/100 (Tear strength in tongue pounds as per Federal Test Standard 191 Method #5134.1 (warp/fill))
• Tensile Strength: 240/220 (Tensile strength in grab pounds as per Federal Test Standard 191 Method #5100 (warp/fill)
• ASTM E84 Rating (Flame/Smoke): 10/75
• NFPA 701 No
Standard Excelon is not LA city approved. Use Excelon-LA when LA city approval is necessary.

Specification
Fitting Type Materials
Fitting Size 1-3/4" x 3" x 1-3/4"
Length 100 ft.
Fitting Sub Type Flexible Duct Connectors
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 7
Exterior Dimensions (D) (inches) 3.000000
Exterior Dimensions (W) (inches) 8.000000
Exterior Dimensions (H) (inches) 8.000000
Shipping Weight (lbs) 7.000000
