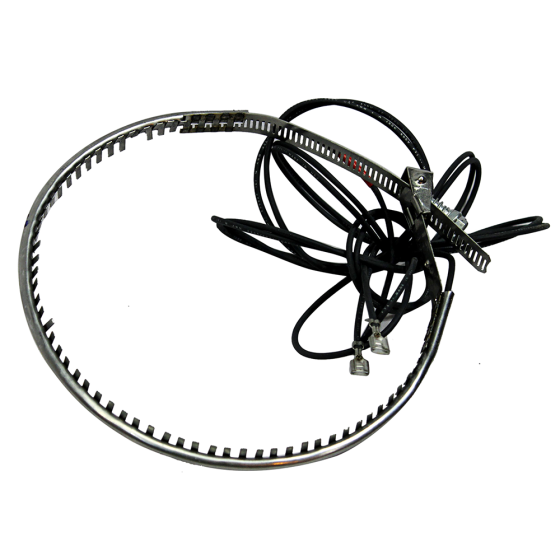

Crankcase Heater Accessory Kit

Item
KAACH1901AAA
  • California Prop 65

FEATURES

The crankcase heater warms the compressor crankcase during the off cycle. Crankcase heater is wired across the open contacts of the contactor. When contactor is de--energized, crankcase heater is on. When contacts are closed, no current flows through the heater because it is on the same line voltage side as the compressor. The heater is used to warm the oil, to reduce refrigerant migration, and ensure proper compressor lubrication.


INCLUDES

Crankcase heater
Installation Instructions
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 2
Exterior Dimensions (D) (inches) 8.000000
Exterior Dimensions (W) (inches) 8.000000
Exterior Dimensions (H) (inches) 2.000000
Shipping Weight (lbs) 2.000000
