Winter Start Control Kit

Item
KAAWS0101AAA
  • California Prop 65

FEATURES

The Winter Start Control Kit Part No. KAAWS0101AAA is designed for use on split-system air conditioners. The device is designed to alleviate nuisance opening of the low-pressure switch by bypassing it for the first 3 minutes of operation.

Winter start control must be used where low evaporator temperatures, or nuisance tripping of low-pressure switch may be encountered.

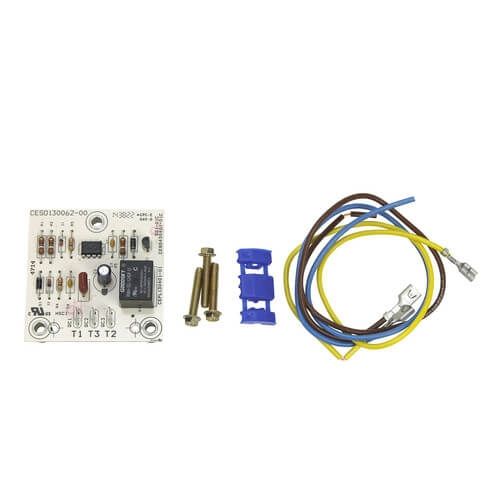

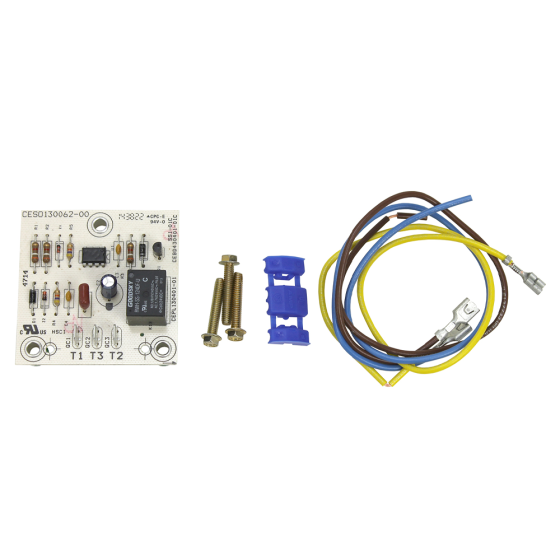

INCLUDES

• (1) Time--Delay Relay (TDR) CESO130062--00
• (1) Installation Instructions
• (1) 13” (330 mm) Blue (tap) Wire
• (1) 13” (330 mm)Yellow Wire
• (1) 13” (330 mm) Brown Wire
• (1) Insulated Tap Connector (HY89TC014)
• (3) Screws
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 0.2
Exterior Dimensions (D) (inches) 2.000000
Exterior Dimensions (W) (inches) 2.000000
Exterior Dimensions (H) (inches) 1.200000
Shipping Weight (lbs) 0.200000
