High-Altitude Pressure Switch Kit
Item
KGAHA5801PSW
FEATURES

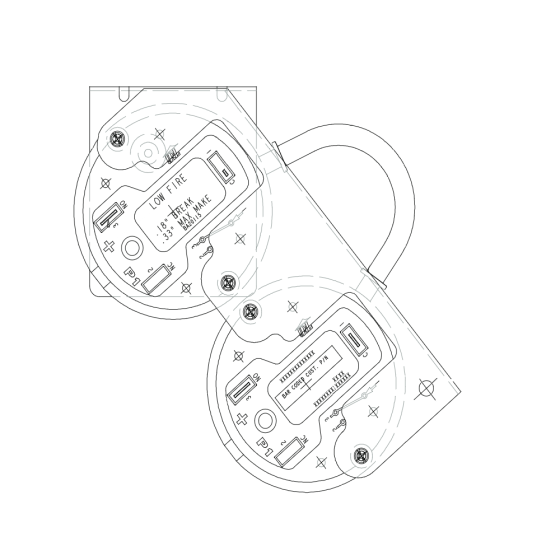

This high-altitude pressure switch kit is required for the installation of the two-stage and variable-speed, 80% AFUE, 33.3-in. (846 mm) induced-combustion furnaces for high altitude installation (above 5,500 ft. [1676 M] above sea level) for the applicable furnaces (See table 1 in the instruction manual for applicable models). The switch set points are shown on the label attached to the front of the switch.
INCLUDES
• 1 High Altitude Switch Assembly• 1 Installation Instructions
Safety Standards | |
---|---|
California Prop 65 | Yes | Hazardous Material | No |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 0.1 | Exterior Dimensions (D) (inches) | 9.500000 | Exterior Dimensions (W) (inches) | 3.800000 | Exterior Dimensions (H) (inches) | 2.600000 | Shipping Weight (lbs) | 0.150000 |
