Control Voltage Adapter Kit
Item
KHAVC0101AAA
APPLICATIONS
The KHAVC0101AAA Kit converts high-voltage control signals from a high wall indoor unit into low-voltage control signals for a horizontal outdoor unit. In heat pump systems, the kit carries both the compressor and the reversing valve control signals.

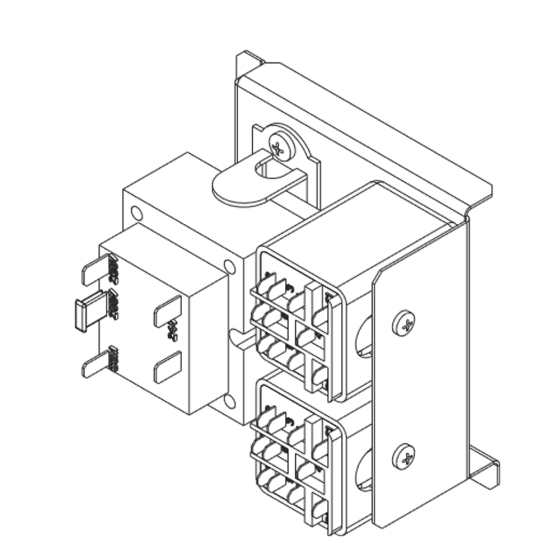

The kit consists of two relays and one transformer mounted to a metal bracket which is designed to fit within the outdoor unit. The kit is pre-wired for heat pump applications; there are nine free wires available for the installer to connect to the indoor and outdoor units.
INCLUDES
• Control Voltage Adapter Kit
• 1/4 inch Phillips Mounting Screws - QTY 3
• Installation Instructions
• Wire Ties
• Electrical Shock Hazard Warning Label
• Wiring Diagram Label
• Label Cover
| Safety Standards | |
|---|---|
| California Prop 65 | Yes | Hazardous Material | No |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 16 | Exterior Dimensions (D) (inches) | 26.770000 | Exterior Dimensions (W) (inches) | 15.320000 | Exterior Dimensions (H) (inches) | 10.400000 | Shipping Weight (lbs) | 14.000000 |
