Cycle Protector

Item
KSACY0101AAA
  • California Prop 65

FEATURES

The cycle protector is designed to prevent compressor short cycling. This control provides an approximate 5-minute delay after power to the compressor has been interrupted for any reason, including power outage, protector control trip, thermostat jiggling, or normal cycling.


INCLUDES

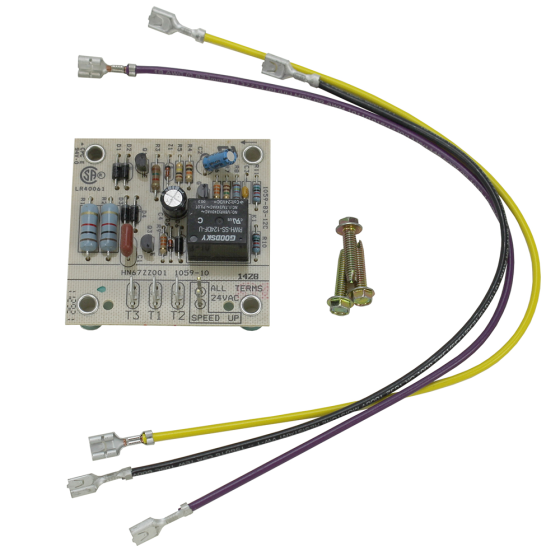

• 1 1Cycle protector
• Screw
• 1 Black wire
• 1 Violet wire (air conditioners)
• 1 Wire label (air conditioners)
• 1 Yellow wire (heat pumps)
• 2 Wire label (heat pumps)
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 0.01
Exterior Dimensions (D) (inches) 1.500000
Exterior Dimensions (W) (inches) 4.000000
Exterior Dimensions (H) (inches) 4.000000
Shipping Weight (lbs) 0.012500
